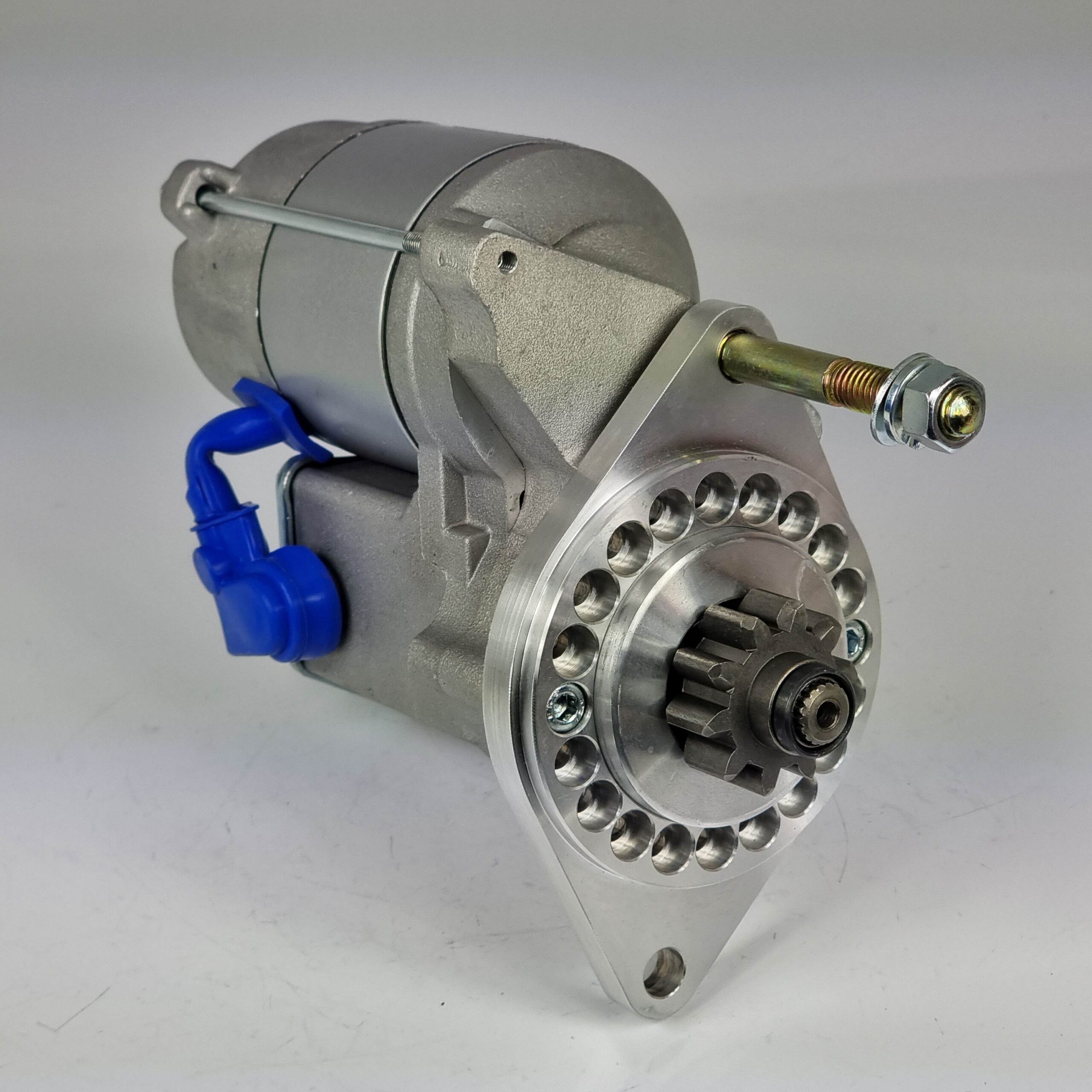

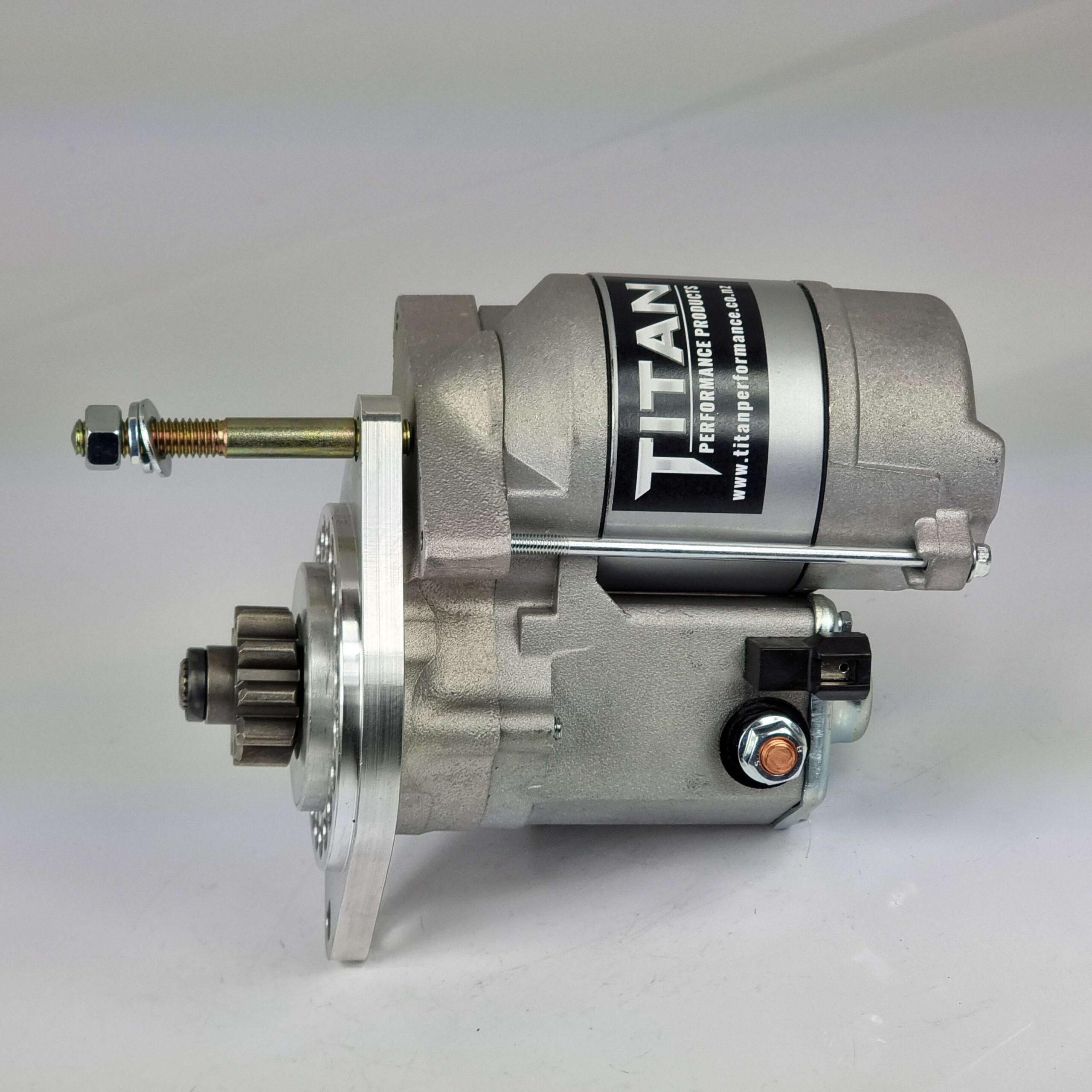

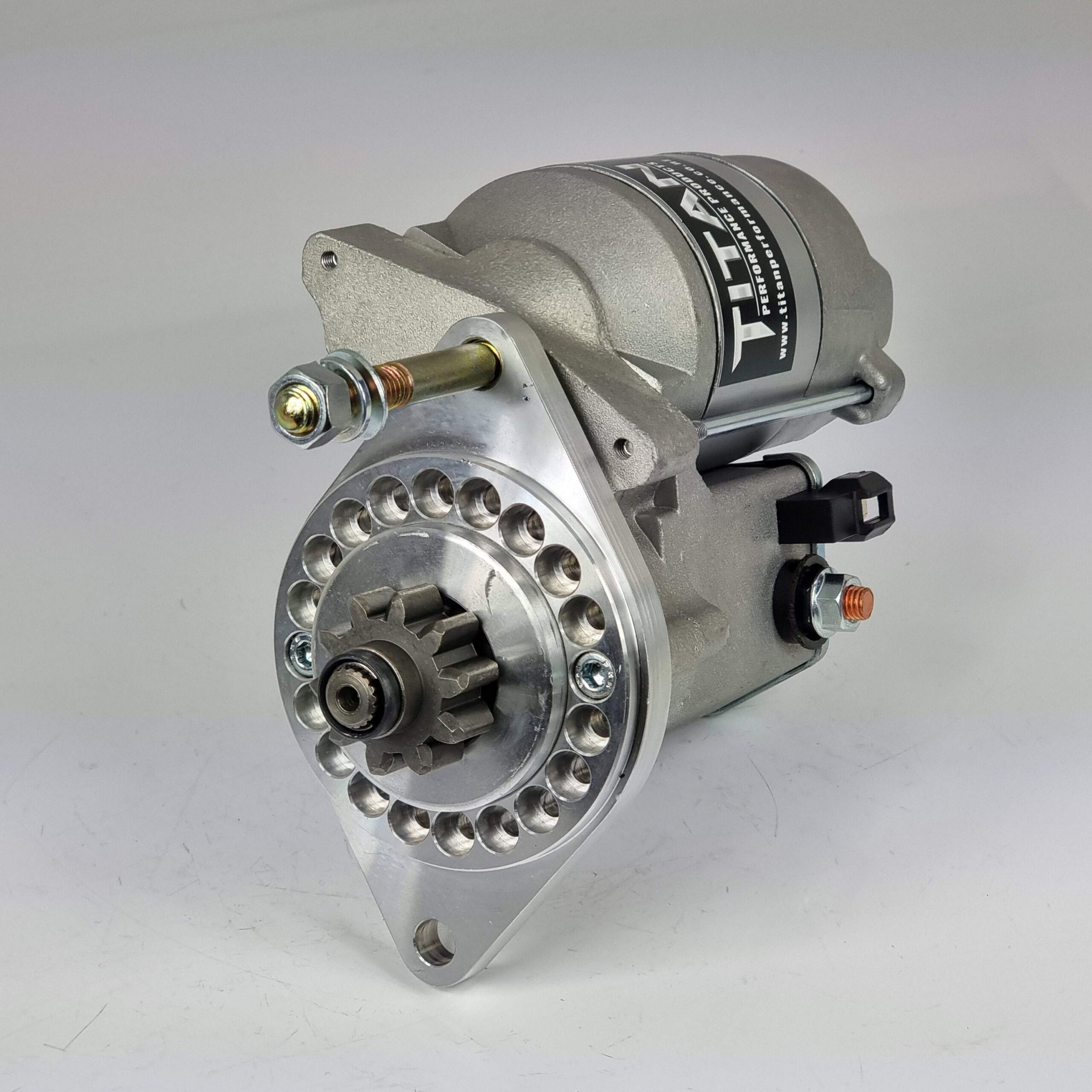

#3 Triumph TR3,TR4,TR4A ‘Quick-Start’ High-Torque Starter Motor TS-4801

$459.00
  • A Durable Ultra-High Torque Starter Motor in a Compact Lightweight design
  • 4.4:1 Gear-Reduction design, Internal solenoid solves ‘heat-soak / hot-start problems
  • Robust construction using all steel-gears , Increased reliability due to use of all-new modern materials and components.
  • Provides more cranking power, draws less current from the battery and weighs a lot less than the original OEM Starter Motor
  • High-Torque ideal for High Compression Engines up to 14:1 Compression
  • Adjustable Aluminum front housing for increased clearances around exhaust, steering and suspension.
  • Will bolt directly to engine with NO modifications
  • Water and Corrosion Resistant
  • Mounting hardware and terminal fitting kit supplied when applicable.
  • Optional :  You can also use our Titan Performance Starter Motor while retaining the vehicles original external solenoid by installing our loop wire . This loop wire jumps the starter’s internal solenoid terminal directly to its main battery post. In this instance all that is required is reconnecting your vehicles original battery cable to the main starter battery post…. Instructions and Loop Wire included

Start strong with Titan Performance Products.
Assembled in New Zealand / Postage 2-5 days / 18 month warranty


SKU Part Number TS-4801 Categories , Tags ,

Specifications

Power/Torque 1.4kW 245nm
Pinion/Rotation 10 Tooth 39mm Diameter Pinion / Clockwise
Mounting Dimensions 89mm Spigot  127mm/ 5″ Bolt Centers
Dimensions/Weight 160 x 140 x 100 / 3.9kg

Vehicle Make and Model Compatibility

Make Model Engine Size Year
Triumph TR3 1955-1962
Triumph TR4, TR4A 1961-1965
