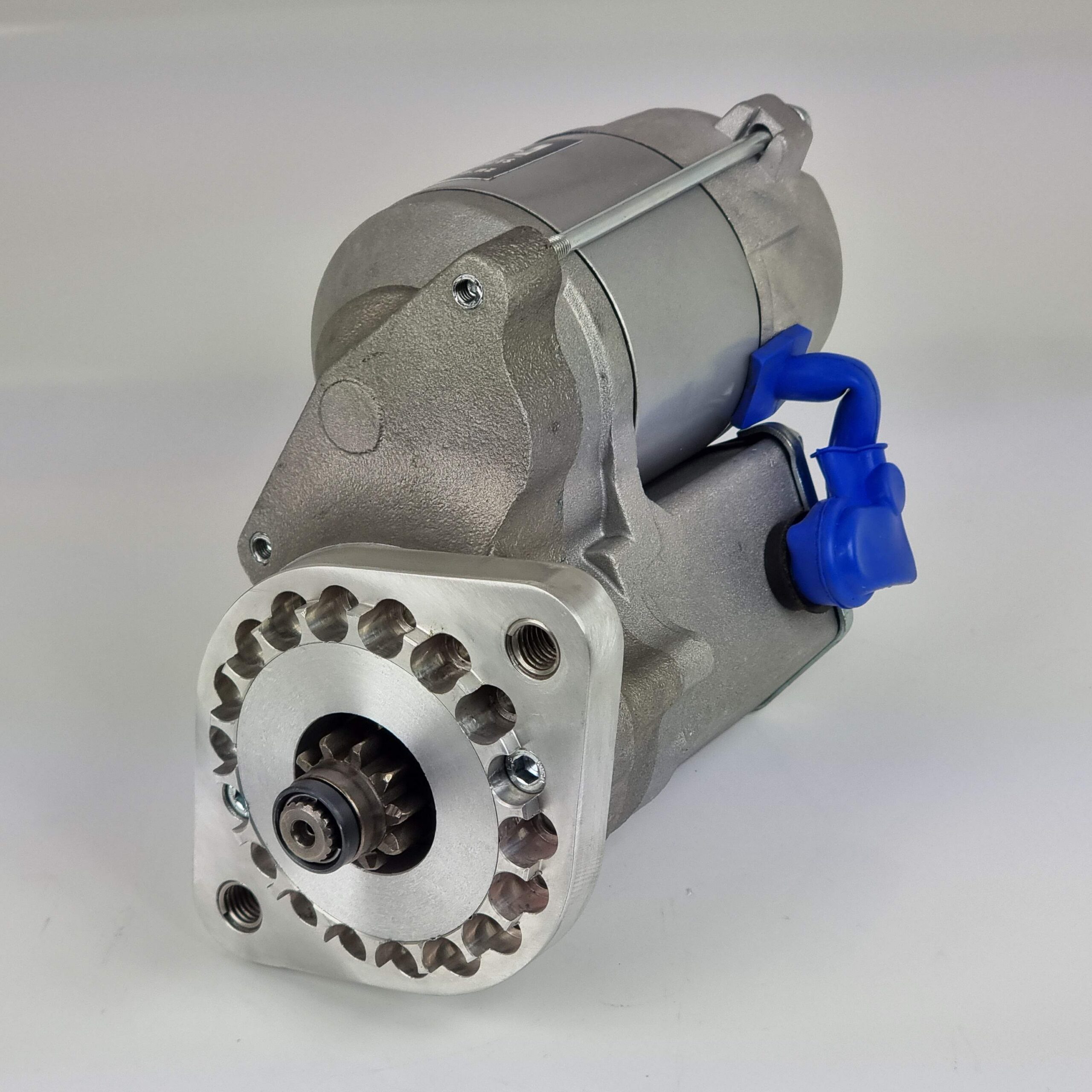

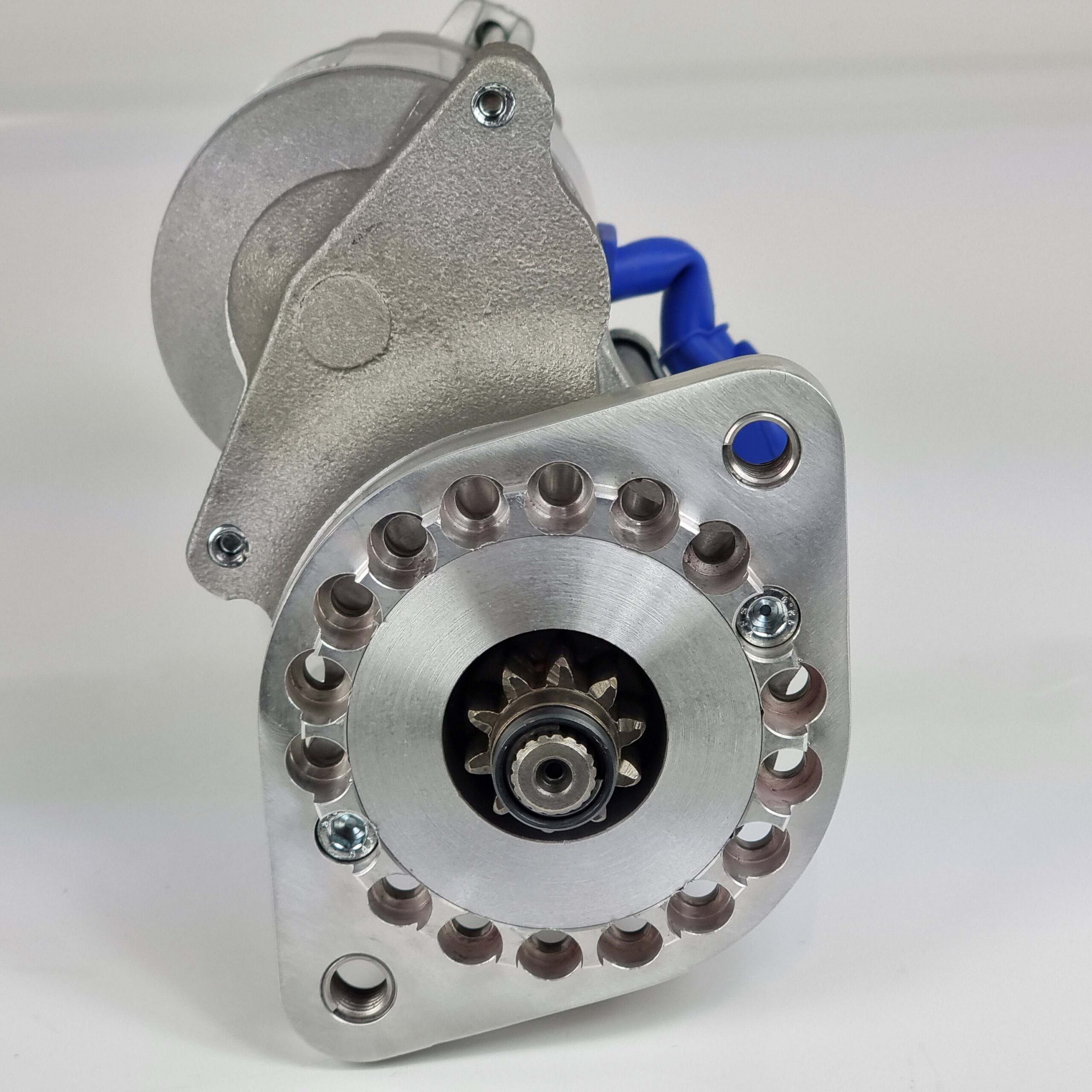

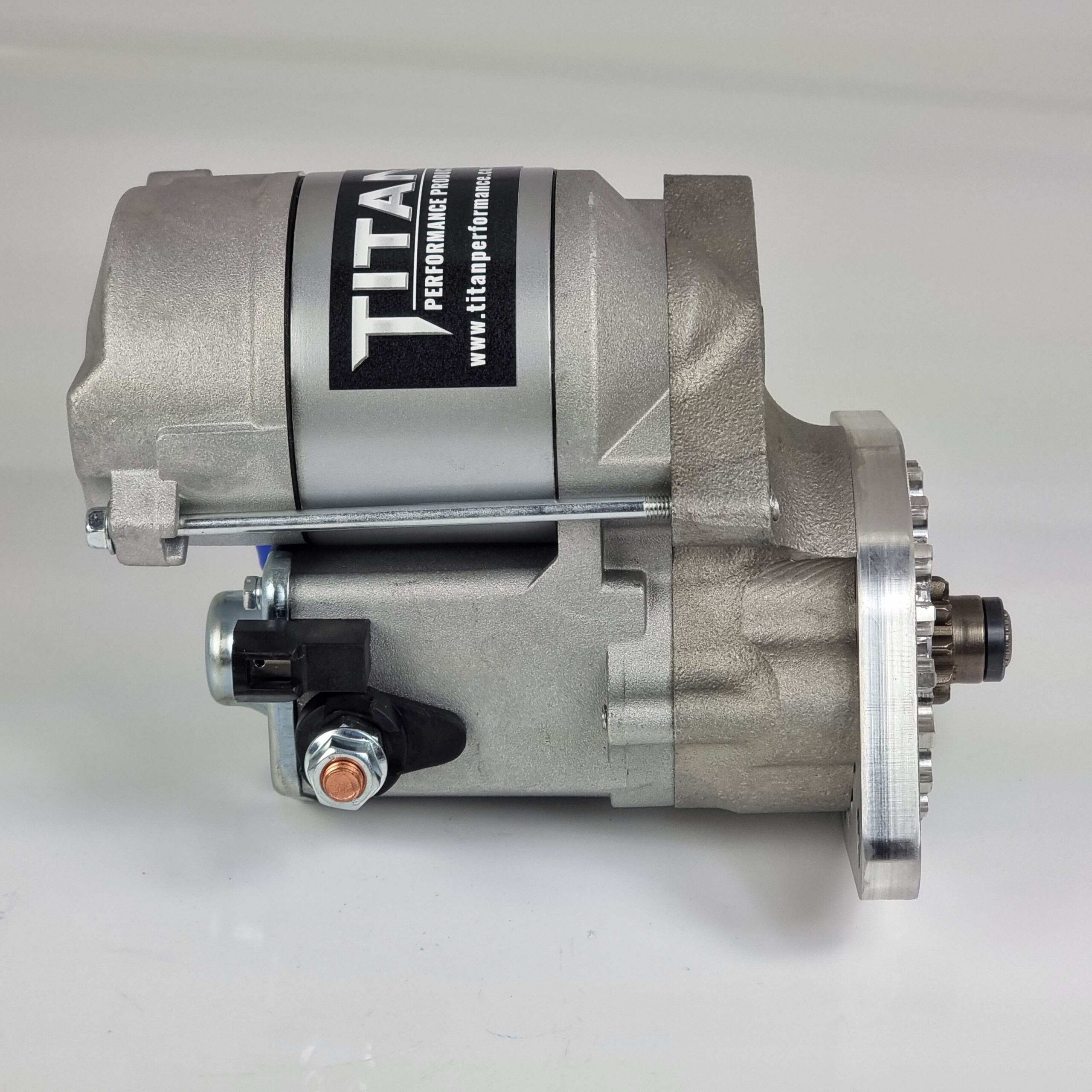

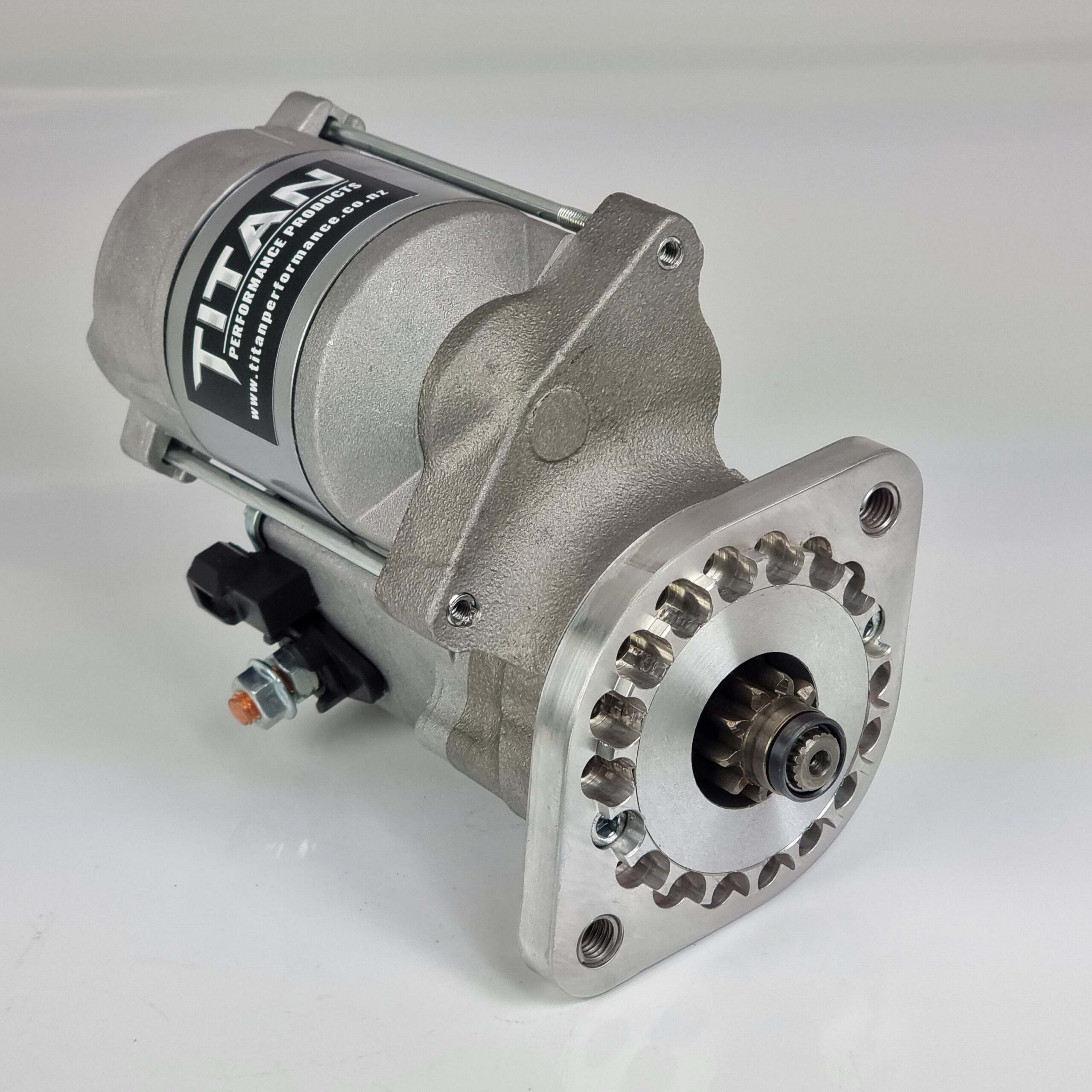

#1 Mercedes Benz V8 1980-2003 400, 420, 500, 560 ‘Quick-Start’ High Torque Starter Motor TS-6205
$459.00
- A Durable Ultra-High Torque Starter Motor in a Compact Lightweight design
- 4.4:1 Gear-Reduction design, Internal solenoid solves ‘heat-soak / hot-start problems
- Robust construction using all steel-gears , Increased reliability due to use of all-new modern materials and components.
- Provides more cranking power, draws less current from the battery and weighs a lot less than the original OEM Starter Motor
- High-Torque ideal for High Compression Engines up to 14:1 Compression
- Adjustable Aluminum front housing for increased clearances around exhaust, steering and suspension.
- Will bolt directly to engine with NO modifications
- Water and Corrosion Resistant
- Mounting hardware and terminal fitting kit supplied when applicable.
Start strong with Titan Performance Products.
Assembled in New Zealand / Postage 2-5 days / 18 month warranty
Specifications
| Power/Torque | 1.4kw 245nm |
| Pinion/Rotation | 10 Tooth 28mm Diameter / Clockwise |
| Mounting Dimensions | Spigot 78mm Mounting Hole Centers 105mm 2 x M10 Threads |
| Dimensions/Weight | 160 x 140 x 100 / 3.7kg |
Vehicle Make and Model Compatibility
| Make | Model | Engine Size | Year |
| Mercedes Benz | 400, 400E, 400SE, 400SEL | 4.2 V8 | 1991-1993 |
| 420, 420SEL | 4.2 V8 | 1986-1991 | |
| 500, 500E, 500SEC, 500SEL, 500SL,
500GE, 560, 560SEC, 560SEL |
5.0 V8
5.6 V8 |
1980-1994 | |
| CL420, CL500, E420, E50 AMG, E500, S420, S500, SL500 | 4.2, 5.0, V8 | 1991-2003 |
