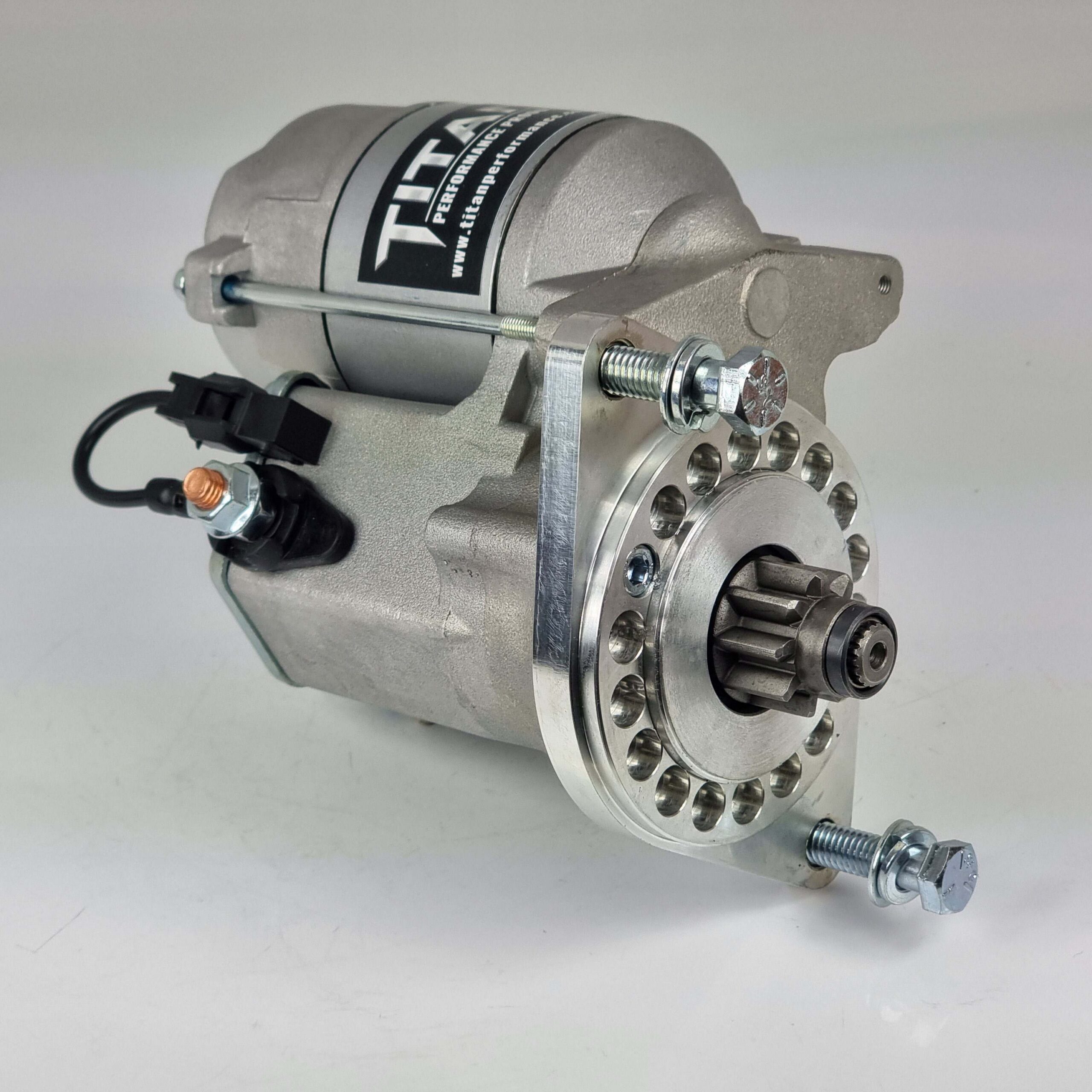

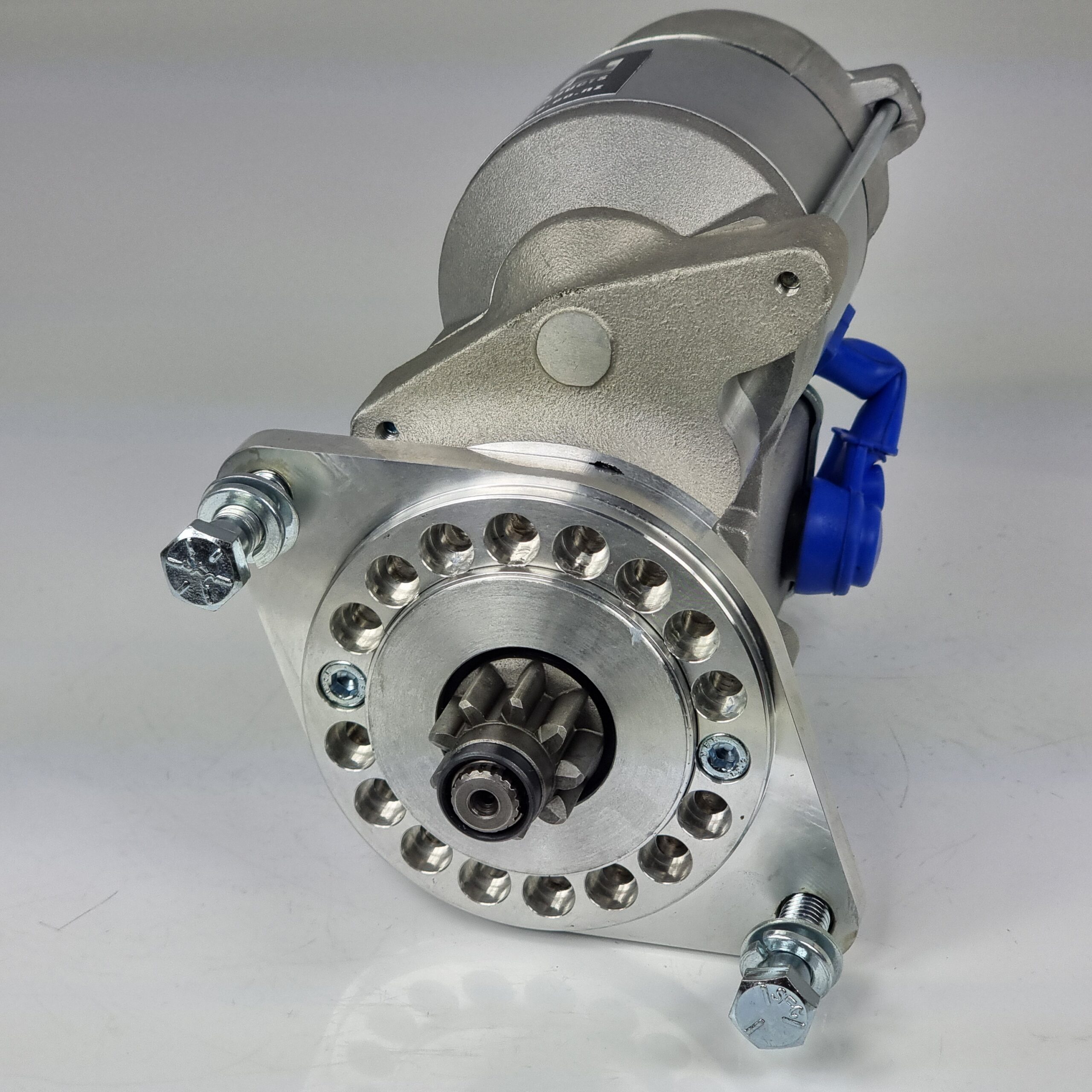

#4 Jaguar MK1/ XK120/ XK140/ XK150 Series Manual Trans High Torque Starter Motor TS-3706
$399.00
High torque starter motor suit Jaguar XK series. Suitable for XK120/140/150 3.4L/3.8L Manual Trans Only. Replaces original inertia type Starter.
- A Durable Ultra-High Torque Starter Motor in a Compact Lightweight design
- 4.4:1 Gear-Reduction design, Internal solenoid solves ‘heat-soak / hot-start problems
- Robust construction using all steel-gears , Increased reliability due to use of all-new modern materials and components.
- Provides more cranking power, draws less current from the battery and weighs a lot less than the original OEM Starter Motor
- High-Torque ideal for High Compression Engines up to 14:1 Compression
- Adjustable Aluminum front housing for increased clearances around exhaust, steering and suspension.
- Will bolt directly to engine with NO modifications
- Water and Corrosion Resistant
- Mounting hardware and terminal fitting kit supplied when applicable.
Start strong with Titan Performance Products.
Assembled in New Zealand / Postage 1-5 days / 18 month warranty
Specifications
| Power/Torque | 1.4kw 245nm |
| Pinion/Rotation | 9 or 10 teeth / 29mm diameter |
| Mounting Dimensions | Spigot 89mm Hole Centers 127mm 3/8 UNC Threads |
| Dimensions/Weight | 160 x 140 x 100 / 4.5kg |
Vehicle Make and Model Compatibility
| Make | Model | Engine Size | Year |
| Jaguar | XK120 | 3.4L | 1948-1954 |
| Jaguar | XK140 | 3.4L | 1954-1957 |
| Jaguar | XK150 | 3.4L/3.8L | 1957-1961 |
| Jaguar | MK1 | 2.4L/ 3.4L | 1955-1959 |
Additional information
| Pinion Size | 9 Tooth / 29mm diameter suits 133 Tooth Ring- Gear * Most Common, 10 Tooth / 29mm diameter suits 132 Tooth Ring-Gear, 10 Tooth 40mm diameter |
|---|
