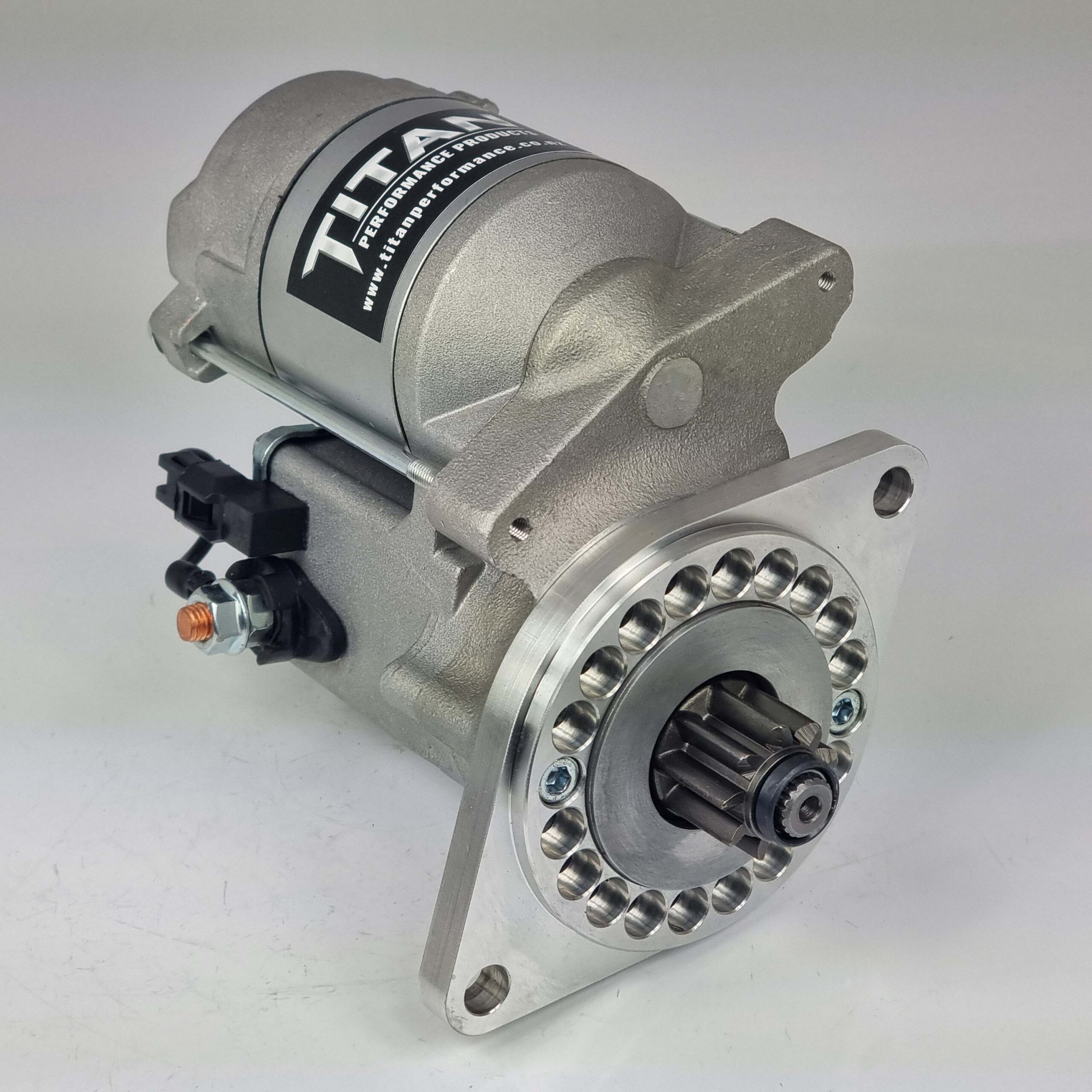

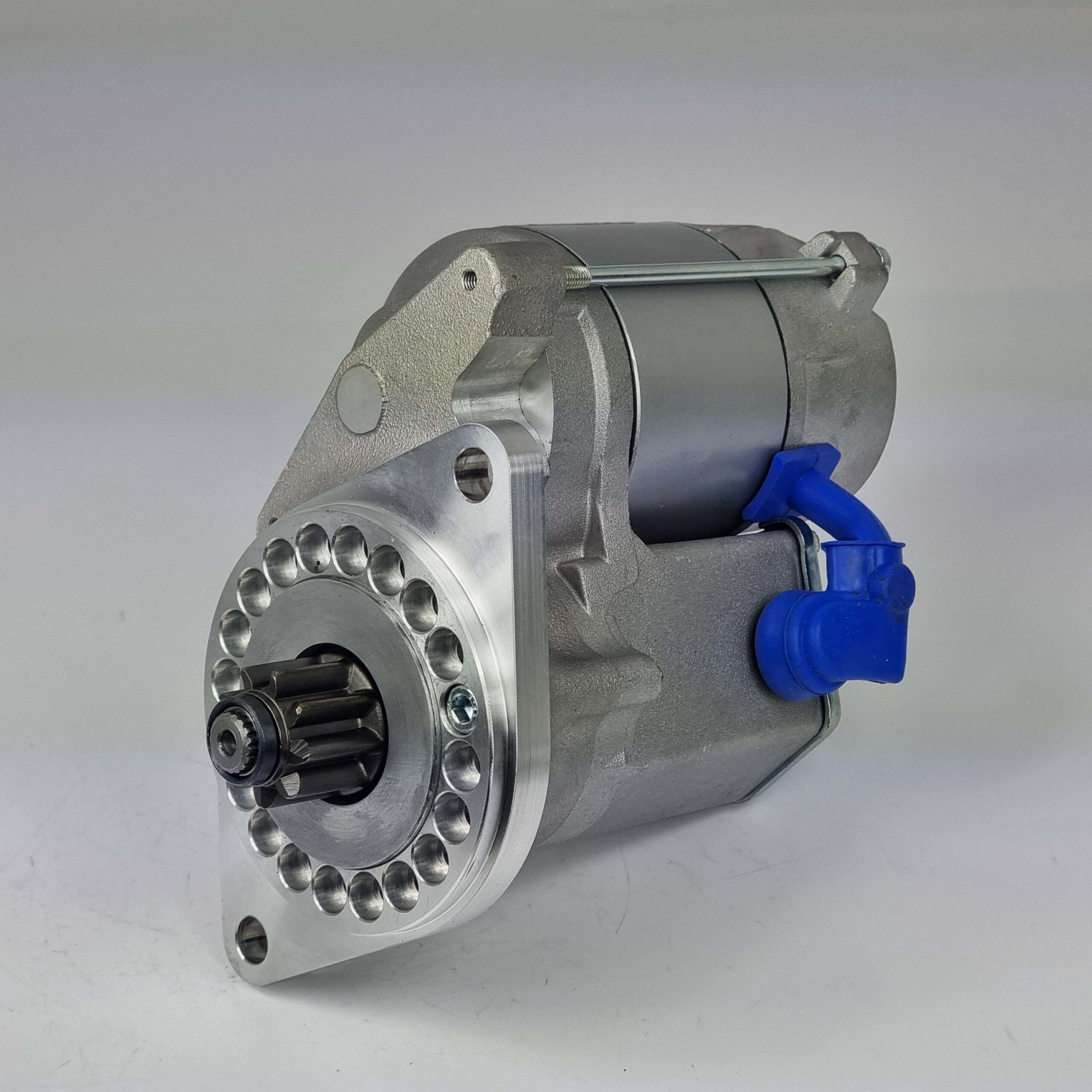

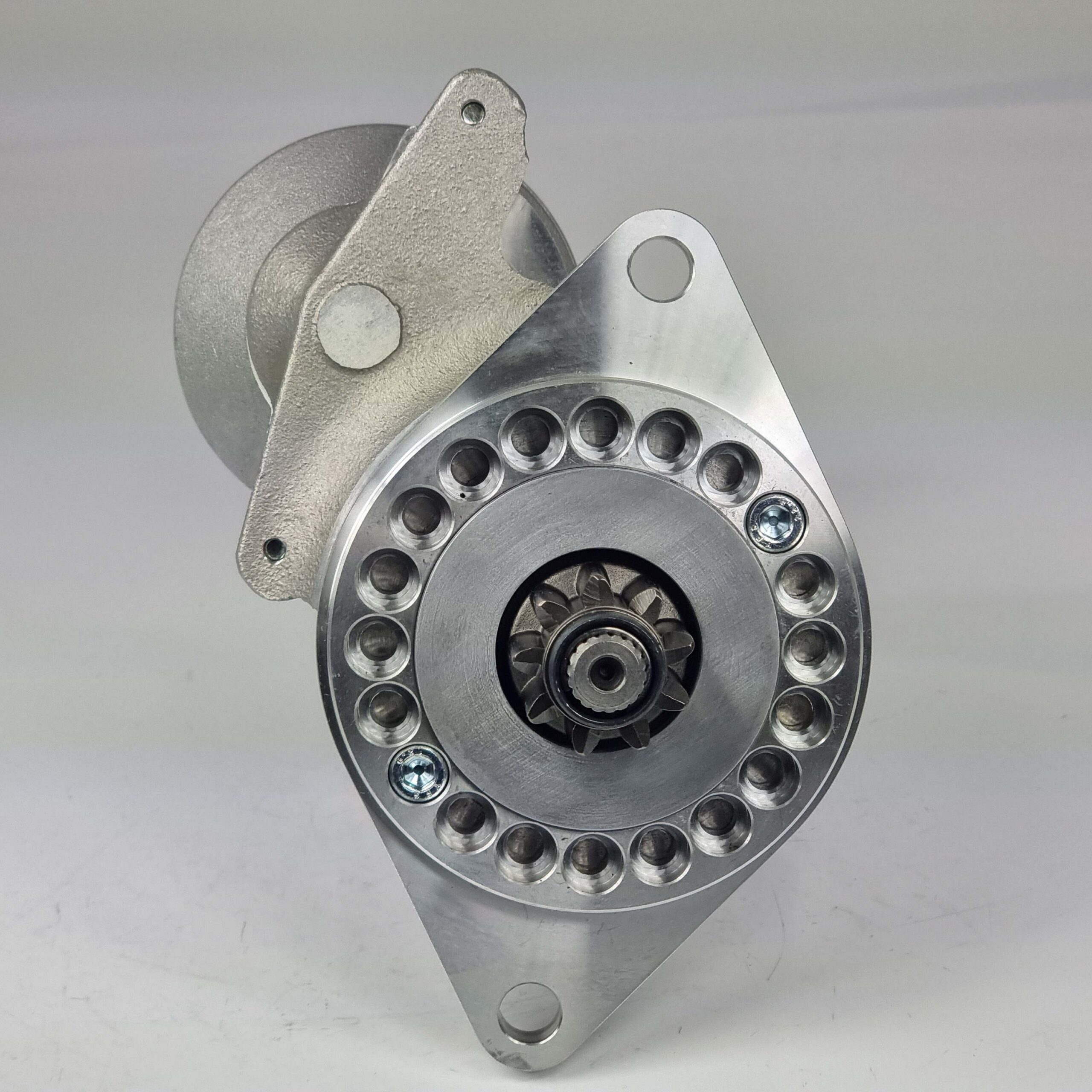

#1 Hillman Minx, Super Minx, Hunter, Avenger, Rootes Group Arrow Series ‘Quick-Start’ High Torque Starter Motor TS-3400
$459.00
Rootes Group “Arrow” Series
- A Durable Ultra-High Torque Starter Motor in a Compact Lightweight design
- 4.4:1 Gear-Reduction design, Internal solenoid solves ‘heat-soak / hot-start problems
- Robust construction using all steel-gears , Increased reliability due to use of all-new modern materials and components.
- Provides more cranking power, draws less current from the battery and weighs a lot less than the original OEM Starter Motor
- High-Torque ideal for High Compression Engines up to 14:1 Compression
- Adjustable Aluminum front housing for increased clearances around exhaust, steering and suspension.
- Will bolt directly to engine with NO modifications
- Water and Corrosion Resistant
- Mounting hardware and terminal fitting kit supplied when applicable.
Start strong with Titan Performance Products.
Assembled in New Zealand / Postage 2-5 days / 18 month warranty
Specifications
| Power/Torque | 1.4kW / 230nm |
| Pinion/Rotation | 9 Tooth 29mm Diameter / CW |
| Mounting Dimensions | 89mm spigot diameter, 2 hole 127mm centres |
| Dimensions/Weight | 150 x 140 x 100 / 3.7kg |
Vehicle Make and Model Compatibility
| Make | Model | Engine Size | Year |
| Hillman | Hunter | 1496/1725cc | 1966-1979 |
| Hillman | Minx, Humber 80 | 1390/1494/1592/1725 | 1956-1967 |
| Hillman | Avenger | 1250-1300, 1500-1600cc | 1970-1980 |
| Hillman | Super Minx, Humber 90 | 1496/1592/1725cc | 1961-1967 |
