#9 Ford Cologne & Taunus V4 & V6 High-Torque Starter Motor (TS-3311)
$399.00

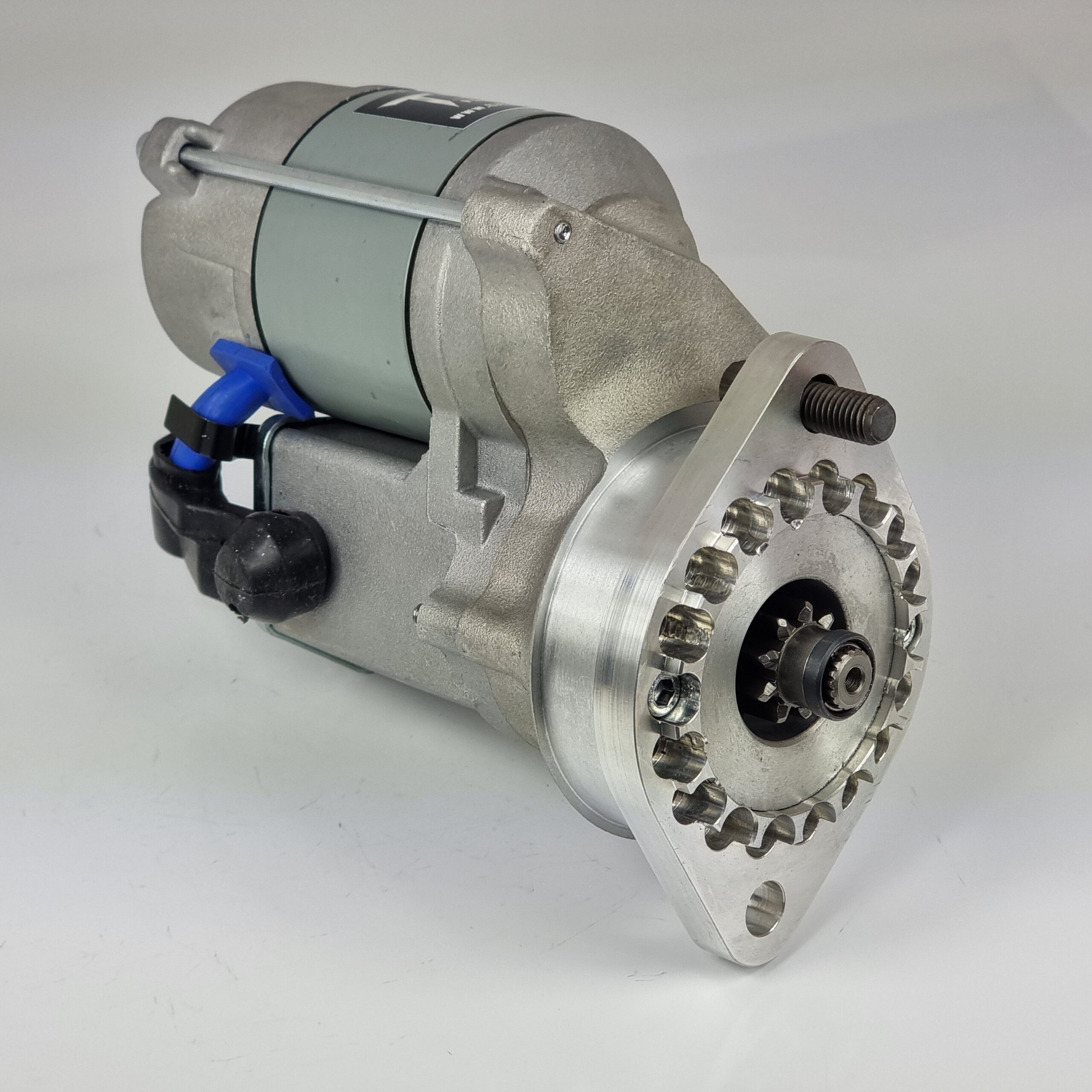

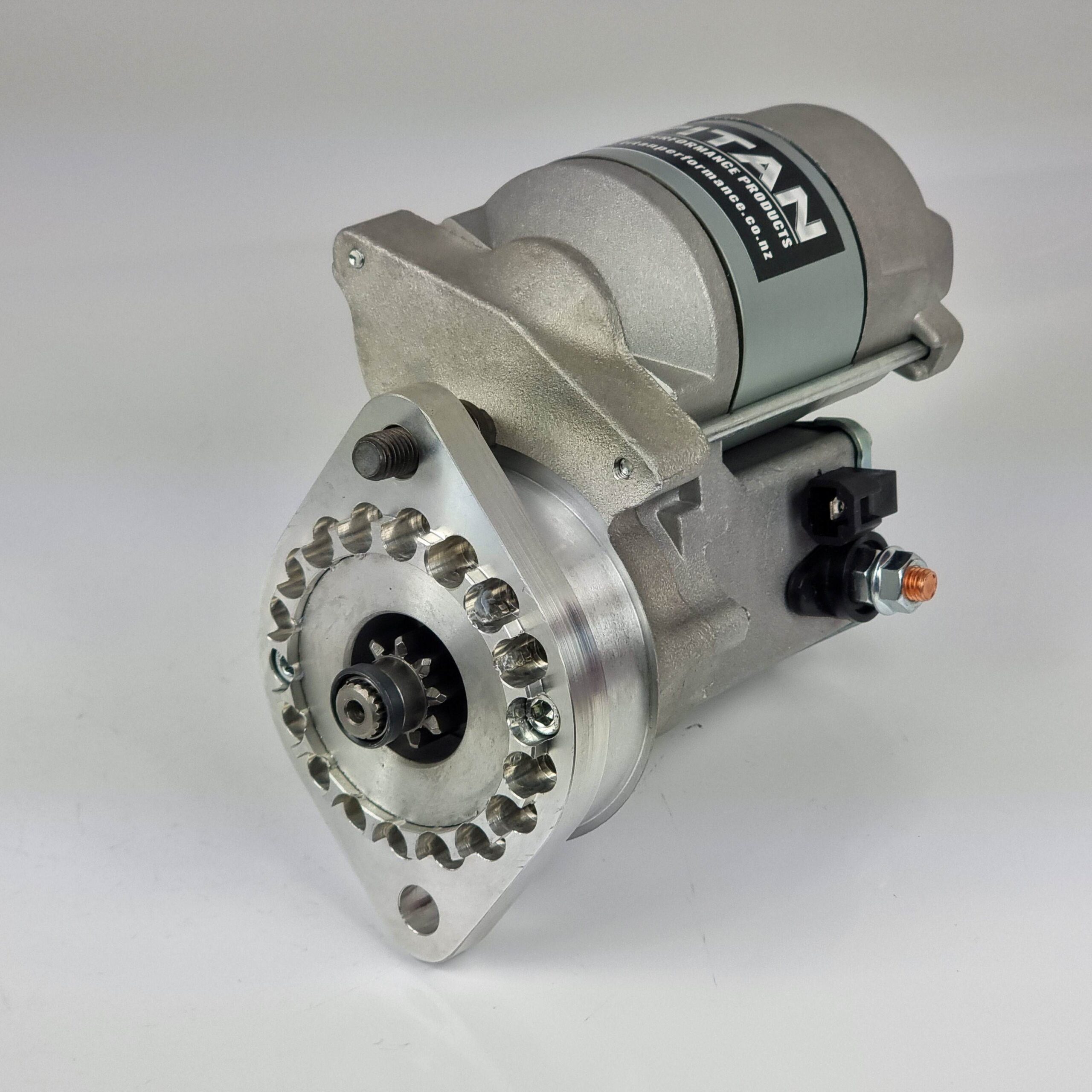

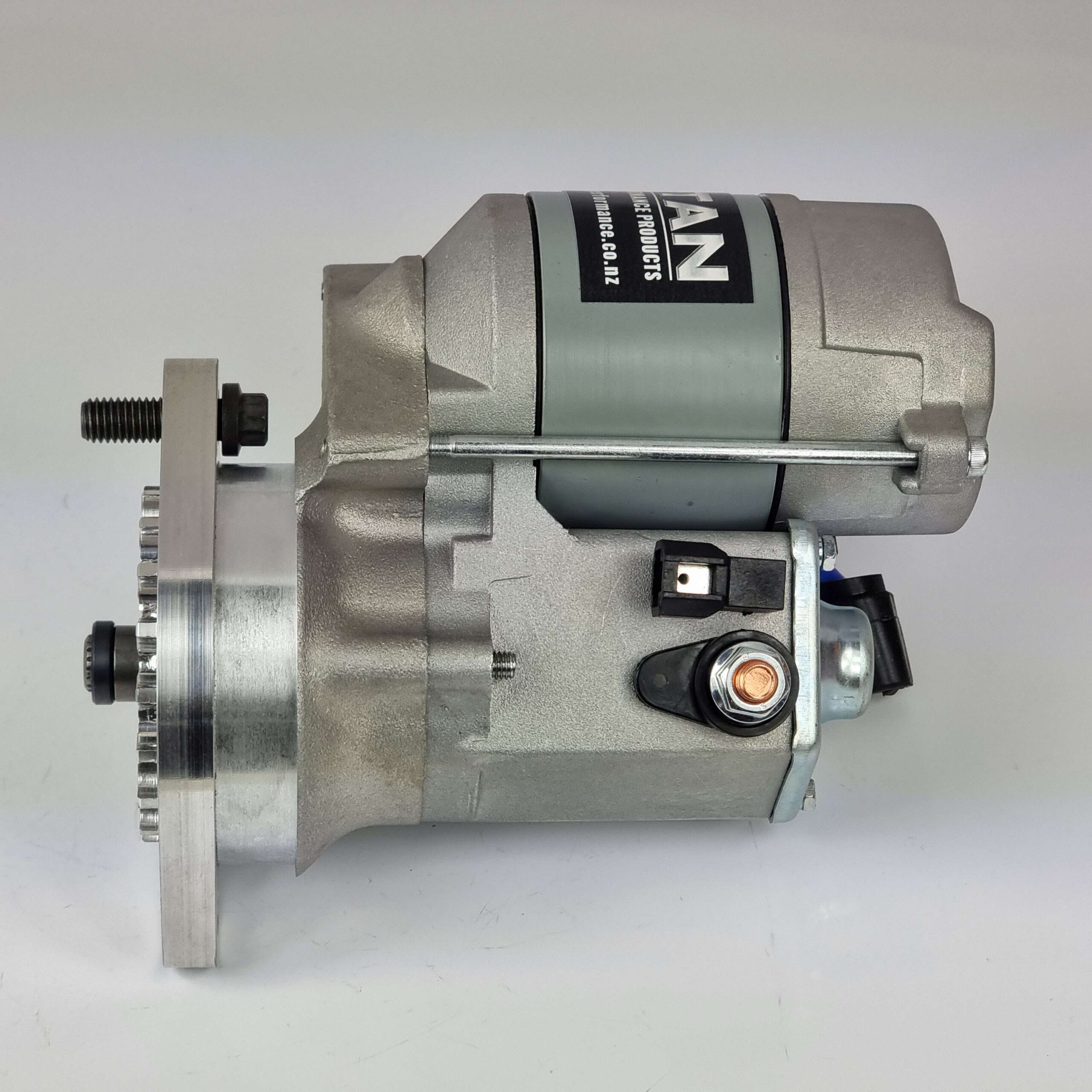

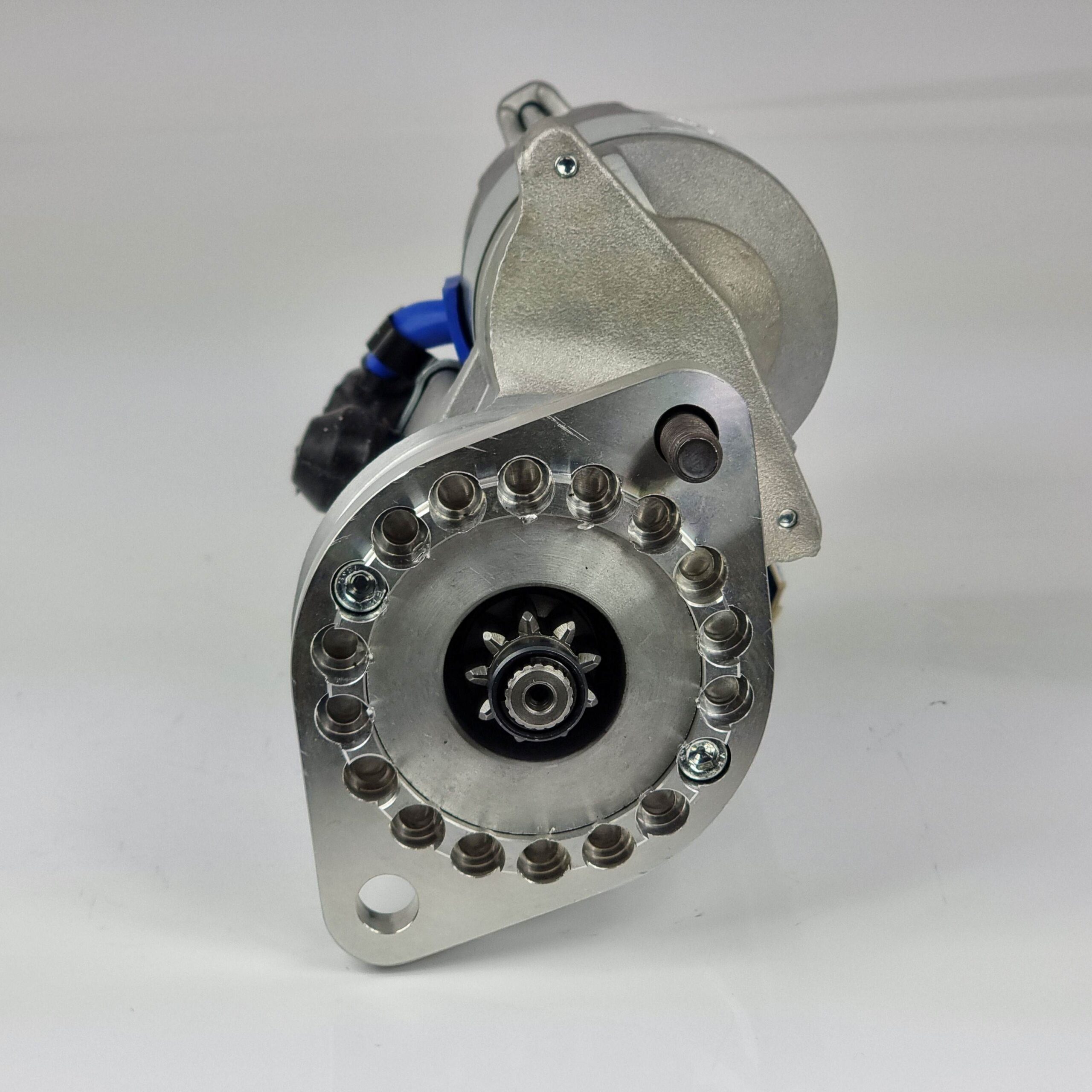

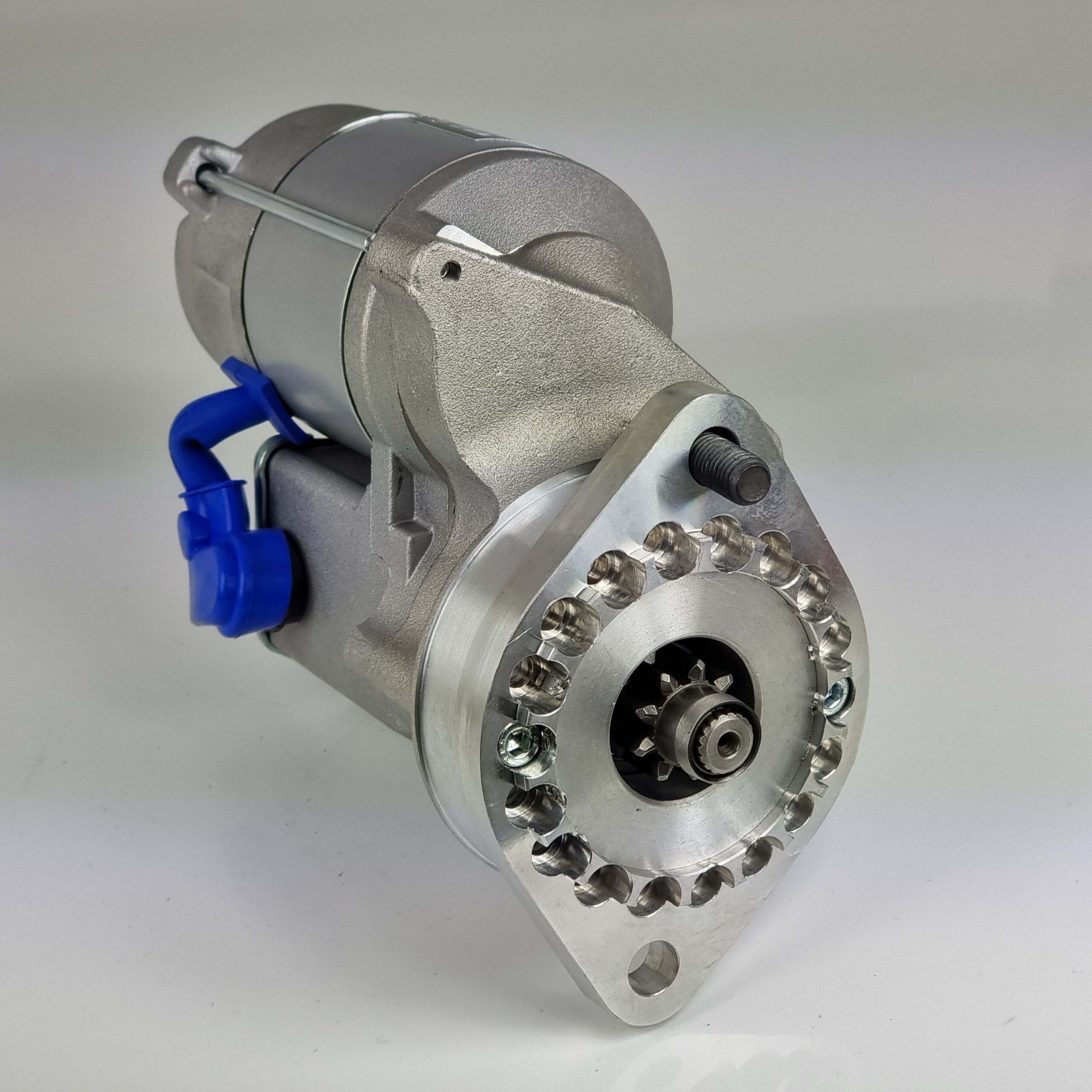

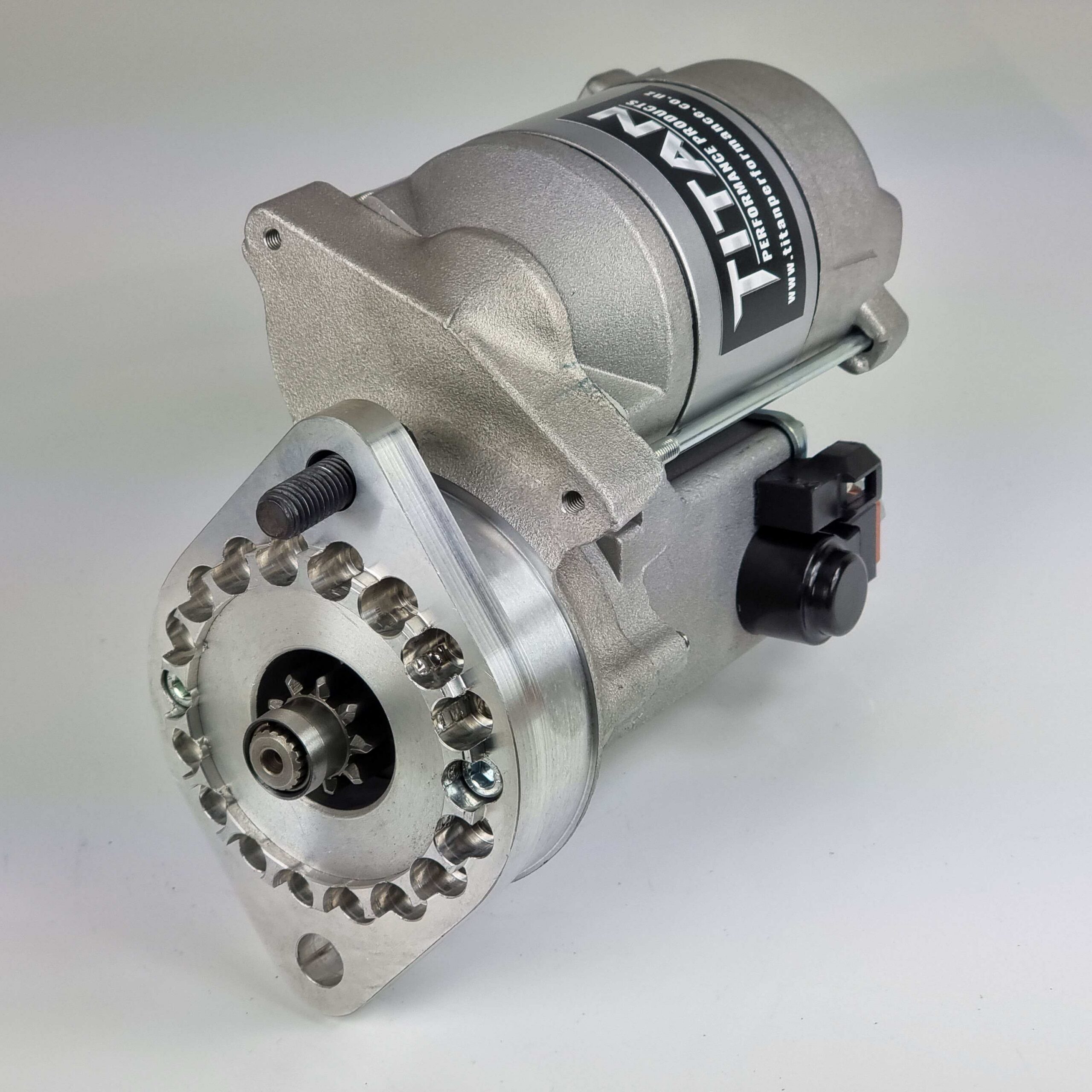

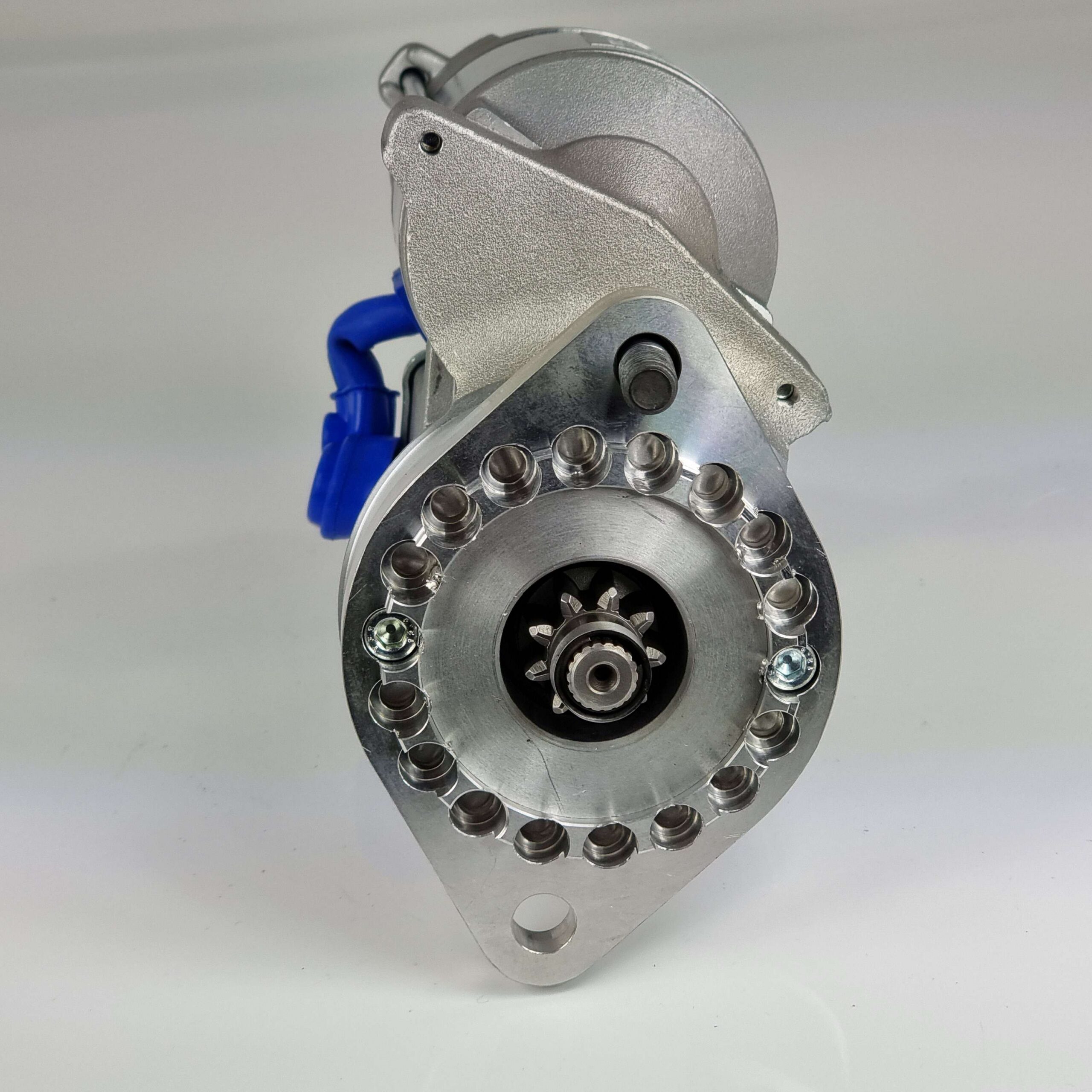

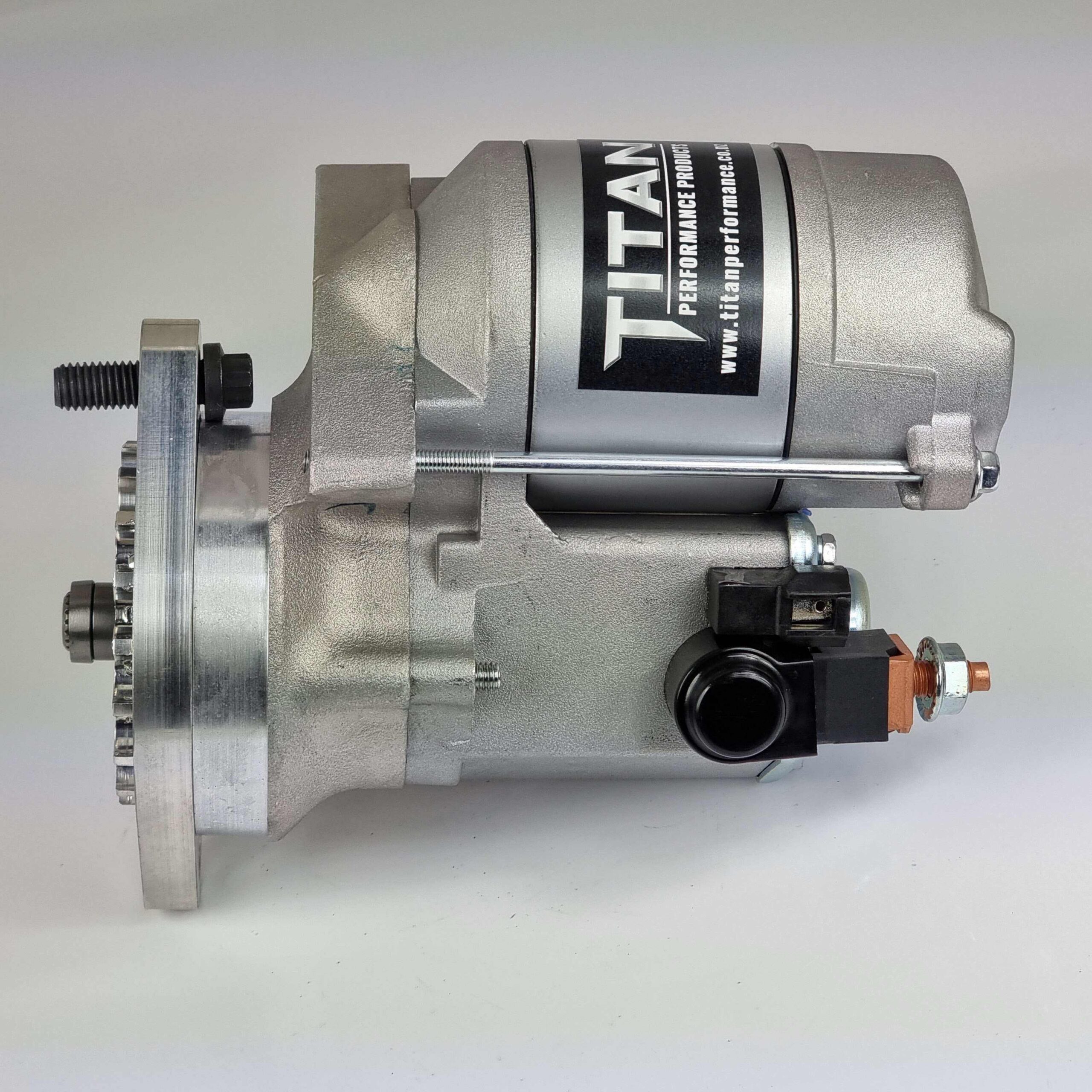

Ford V4 & V6 Taunus & Cologne Engines, High Torque Starter Motor
Starter motor is a direct replacement for Ford Taunus and Cologne engines. Ford V4 and V6, commonly known as the Taunus (in Germany) and Cologne engines. This unit is a direct replacement for Capri, Granada, Sierra & Scimitar.
- A Durable Ultra-High Torque Starter Motor in a Compact Lightweight design
- 4.4:1 Gear-Reduction design, Internal solenoid solves ‘heat-soak / hot-start problems
- Robust construction using all steel-gears , Increased reliability due to use of all-new modern materials and components.
- Provides more cranking power, draws less current from the battery and weighs a lot less than the original OEM Starter Motor
- High-Torque ideal for High Compression Engines up to 14:1 Compression
- Adjustable Aluminum front housing for increased clearances around exhaust, steering and suspension.
- Will bolt directly to engine with NO modifications
- Water and Corrosion Resistant
- Mounting hardware and terminal fitting kit supplied when applicable.
Start strong with Titan Performance Products.
Assembled in New Zealand / Postage 2-5 days / 18 month warranty
Specifications
Power/Torque | 1.4kw 1.9hp 245nm |
Pinion/Rotation | 9 Tooth 25mm Diameter CW |
Mounting Dimensions | Spigot 76mm 105mm Bolt Centers |
Dimensions/Weight | 160 x 140 x 100 / 4.5kg |
Vehicle Make and Model Compatibility
Make | Model | Engine Size | Year |
Ford | Cologne V4-V6 Engines | 1.8, 2.0, 2.4, 2.6, 2.8, 2.9, 4.0L | |
Ford | Taunus , Sierra V4-V6 Engines | 1.8, 2.0, 2.4, 2.6, 2.8, 2.9, 4.0L | 1975-1985 |
Ford | Cortina Mark IV, Mark V, Consul | 2.0 – 2.3 Liter | 1972-1982 |
Ford | Capri 1, 111, Granada 11 | 2.0 – 2.3 – 2.8 Liter | 1969-1985 |
Ford | 17M, 20M, 26M | 1.7, 2.3, 2.5 Liter | 1967-1972 |
Reliant | Scimitar GTC & GTE | 2.8 Liter | 1980-1986 |
