#1 Ford Flathead V8 USA-UK-French High Torque Starters
$399.00
Ford Flathead – Sidevalve 8BA/59 24 Stud V8 Engines . 12 Volt Only
Three Starter options available to suit American, UK, French Engine Blocks
Please select option below

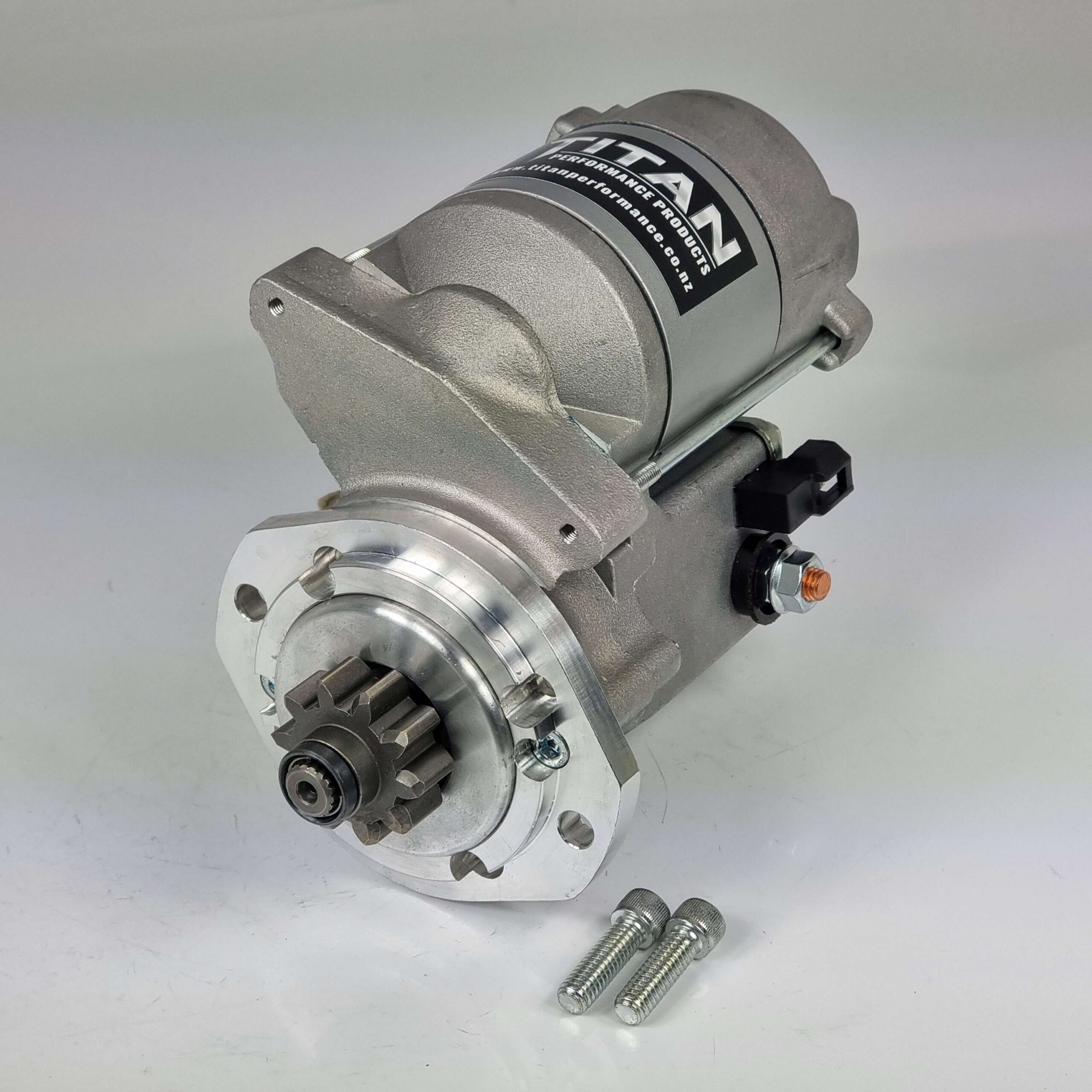

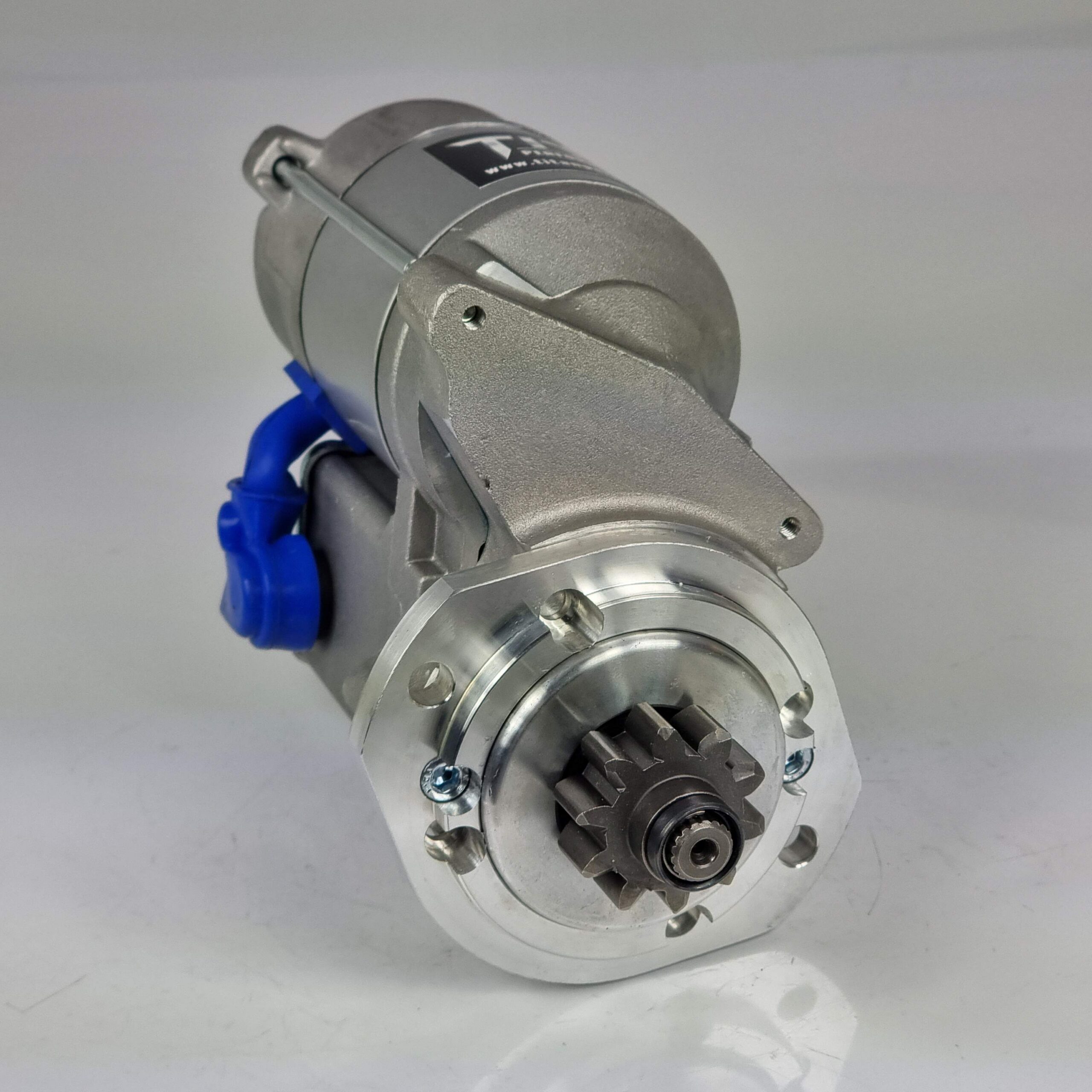

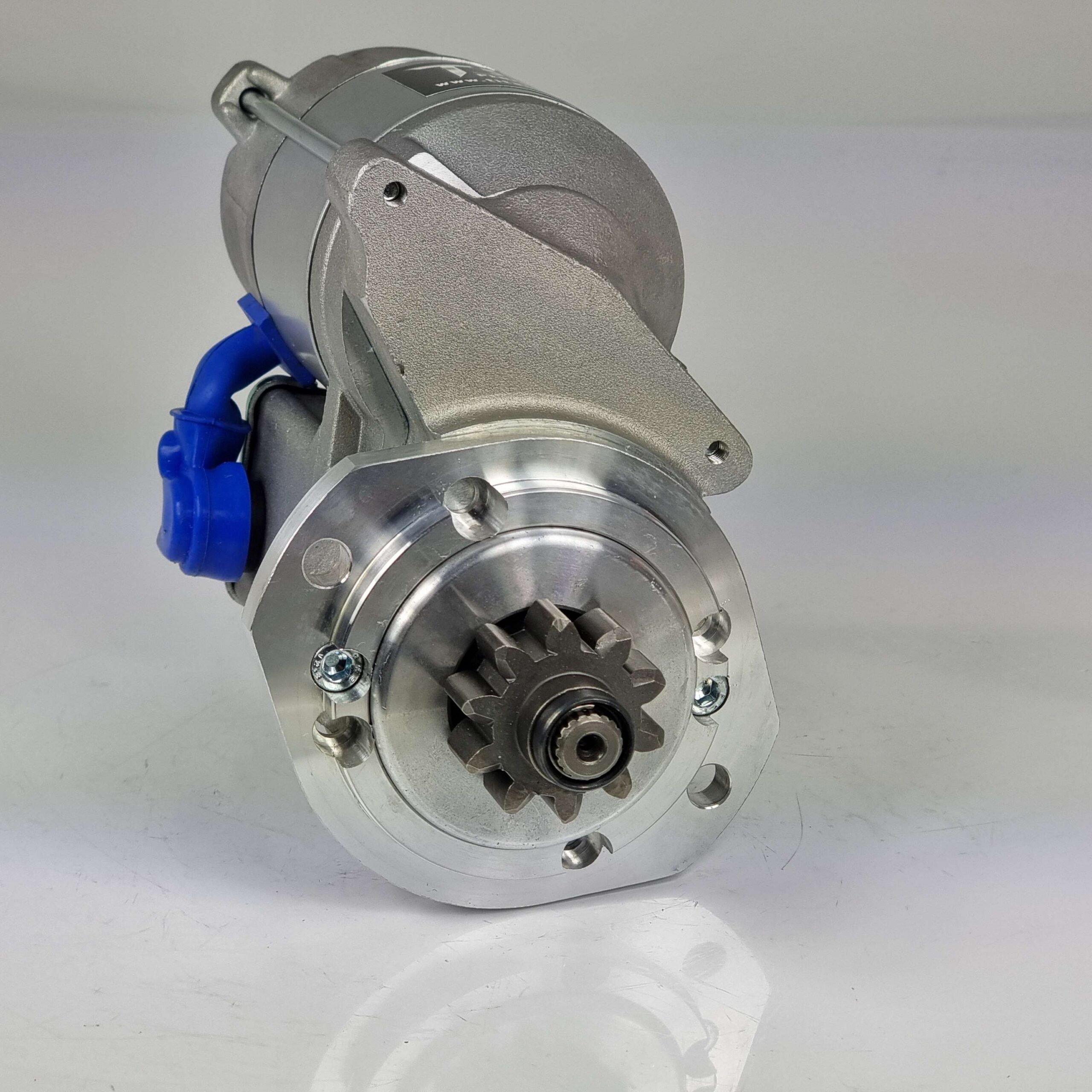

- A Durable Ultra-High Torque Starter Motor in a Compact Lightweight design
- 4.4:1 Gear-Reduction design, Internal solenoid solves ‘heat-soak / hot-start problems
- Robust construction using all steel-gears , Increased reliability due to use of all-new modern materials and components.
- Provides more cranking power, draws less current from the battery and weighs a lot less than the original OEM Starter Motor
- High-Torque ideal for High Compression Engines up to 14:1 Compression
- Adjustable Aluminum front housing for increased clearances around exhaust, steering and suspension.
- Will bolt directly to engine with NO modifications
- Water and Corrosion Resistant
- Mounting hardware and terminal fitting kit supplied when applicable.
Start strong with Titan Performance Products.
Assembled in New Zealand / Postage 2-5 days / 18 month warranty
Specifications
| Power/Torque | 1.2kW / 1.6HP 230 NM 12 Volt Only |
| Pinion/Rotation | 9 T-10T/29-39mm dia CW |
| Mounting Dimensions | 76mm Spigot diameter, 2 hole 89mm |
| Dimensions/Weight | 150 x 140 x 100 / 3.7kg |
This High Torque Starter Motor is specifically designed to fit your Ford Flathead V8.
Vehicle Make and Model Compatibility
| Make | Model | Engine Size | Year |
| Ford | Various | 136 / 221 / 239 / 255 / 337 | 1932-1953 |
Additional information
| Please select Ring-Gear Option | TS-1509 American Engines 1932-1953 112 Tooth Ring Gear. 10 Teeth/39mm diam pinion, TS-1512 UK 1939-1952 V8-Pilot 2N, 8N, 9N9 Engines 144 Tooth Ring Gear 9 Teeth 29mm diam pinion, TS-1513 French made Block & Aluminum Flywheel 112 tooth Ring Gear 10 teeth 39mm diam pinion. |
|---|
