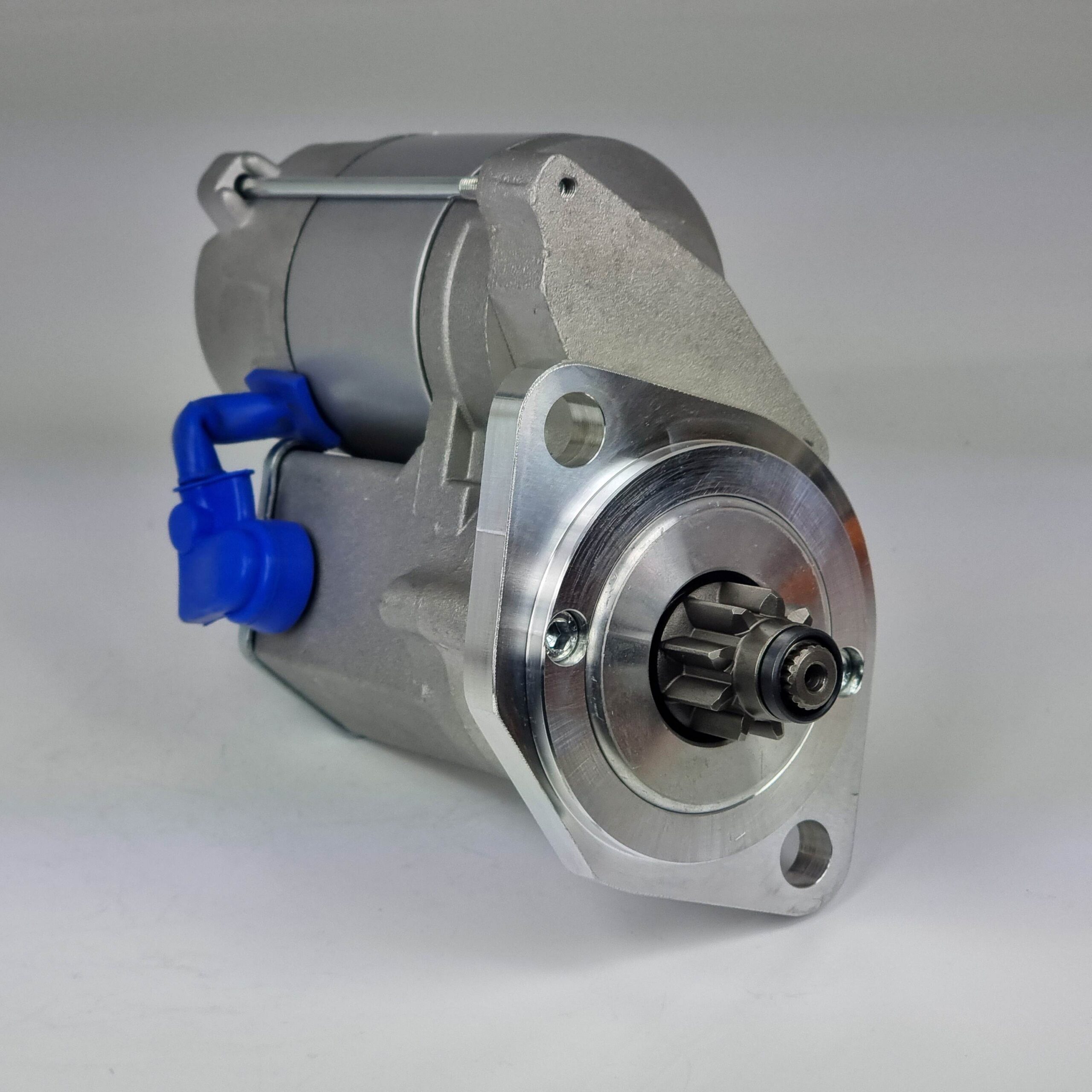

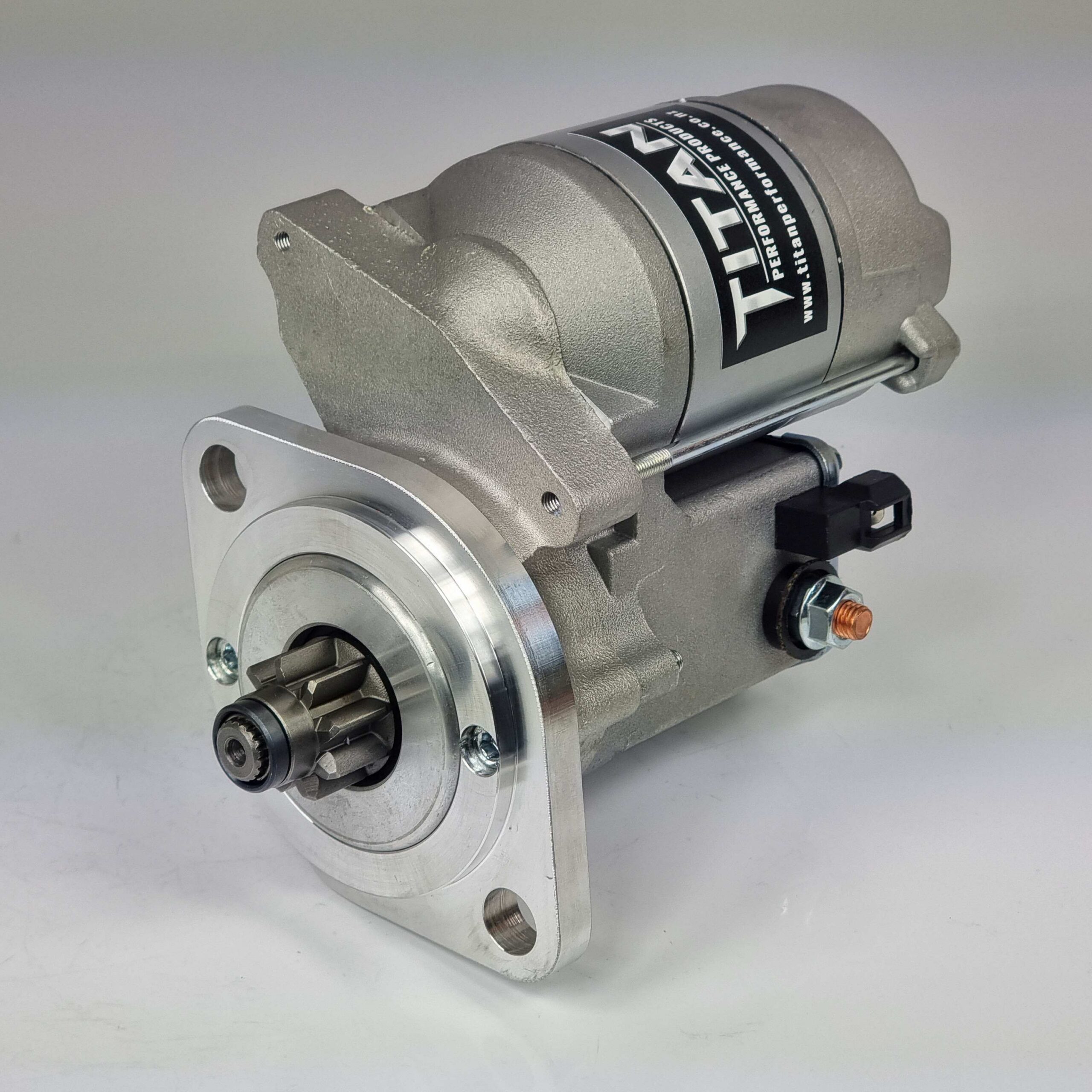

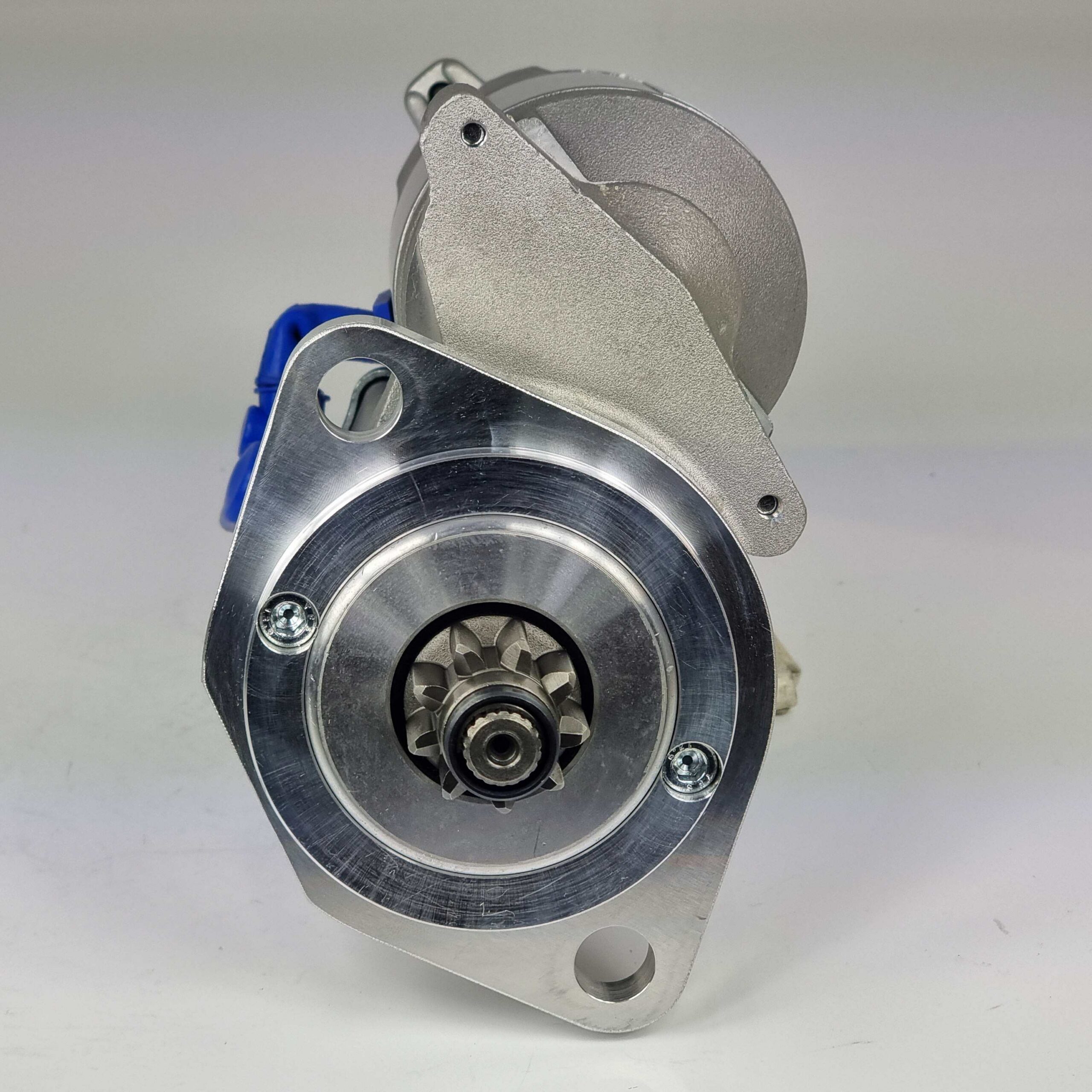

#6 Chevrolet Blue Flame 1942-1962 1.4KW Quick-Start Starter Motor
$399.00
Chevrolet Stovebolt 6 cylinder Blue Flame
Two options depending on ring gear-
Early 40’s and 50’s with 139 tooth ring gear ( 6 Volt) 9 Tooth/ 29mm diameter pinion
Later 50’s to 60’s with 168 tooth ring gear and 9 Tooth/ 25mm diameter pinion.
** Please advise if used in Truck Application as the position of Starter is different due clutch Pedal/Lever interference **
- A Durable Ultra-High Torque Starter Motor in a Compact Lightweight design
- 4.4:1 Gear-Reduction design, Internal solenoid solves ‘heat-soak / hot-start problems
- Robust construction using all steel-gears , Increased reliability due to use of all-new modern materials and components.
- Provides more cranking power, draws less current from the battery and weighs a lot less than the original OEM Starter Motor
- High-Torque ideal for High Compression Engines up to 14:1 Compression
- Adjustable Aluminum front housing for increased clearances around exhaust, steering and suspension.
- Will bolt directly to engine with NO modifications
- Water and Corrosion Resistant
- Mounting hardware and terminal fitting kit supplied when applicable.
- See listing #61 for ‘Ultra-Torque’ 2KW 2.7HP Starter Motor
Start strong with Titan Performance Products.
Assembled in New Zealand / Postage 2-5 days / 18 month warranty
Specifications
| Power/Torque | 1.4kW / 1.9HP 200 ft.lb 12 Volt Only |
| Pinion/Rotation | 9Tooth /CW |
| Mounting Dimensions | 82mm spigot diameter, 2 hole 108mm centers |
| Dimensions/Weight | 160 x 140 x 100 / 4.0kg |
Vehicle Make and Model Compatibility
| Make | Model | Engine Size | Year |
| Chevrolet/GM | Bel Air, 150, 210 , Corvette, Nomad, Biscayne, Impala, El Camino, Kingswood, Fleetwood, Delray, Fleetline, Corvette, Impala, Suburban C10, C20,C30, C40, C50, C60 L6 Pickup. K10, K20 Pickup. P10, P20, P30 Series | L6- 216/ 228/ 235/ 236/ 248/ 261 | 1942 -1963 |
Additional information
| Pinion Diameter | TS-1301 Pinion 9 Tooth 29mm Diameter suits 139 Tooth Ring-Gears ( Early Vehicles 1942-1954), TS-1302 Pinion 9 Tooth 25mm Diameter suits 168 Tooth Ring-Gears (Late Vehicles 1950-1962) |
|---|
