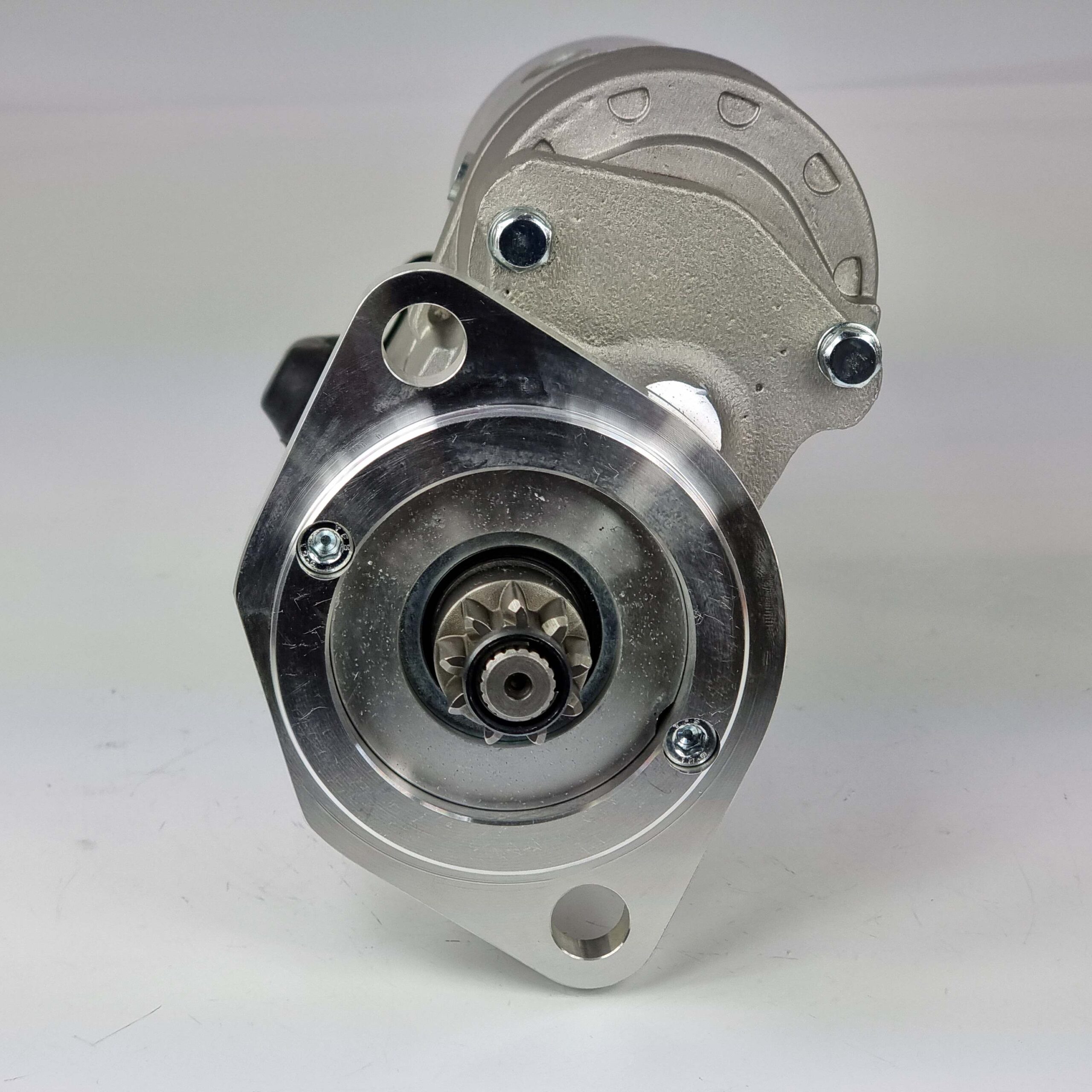

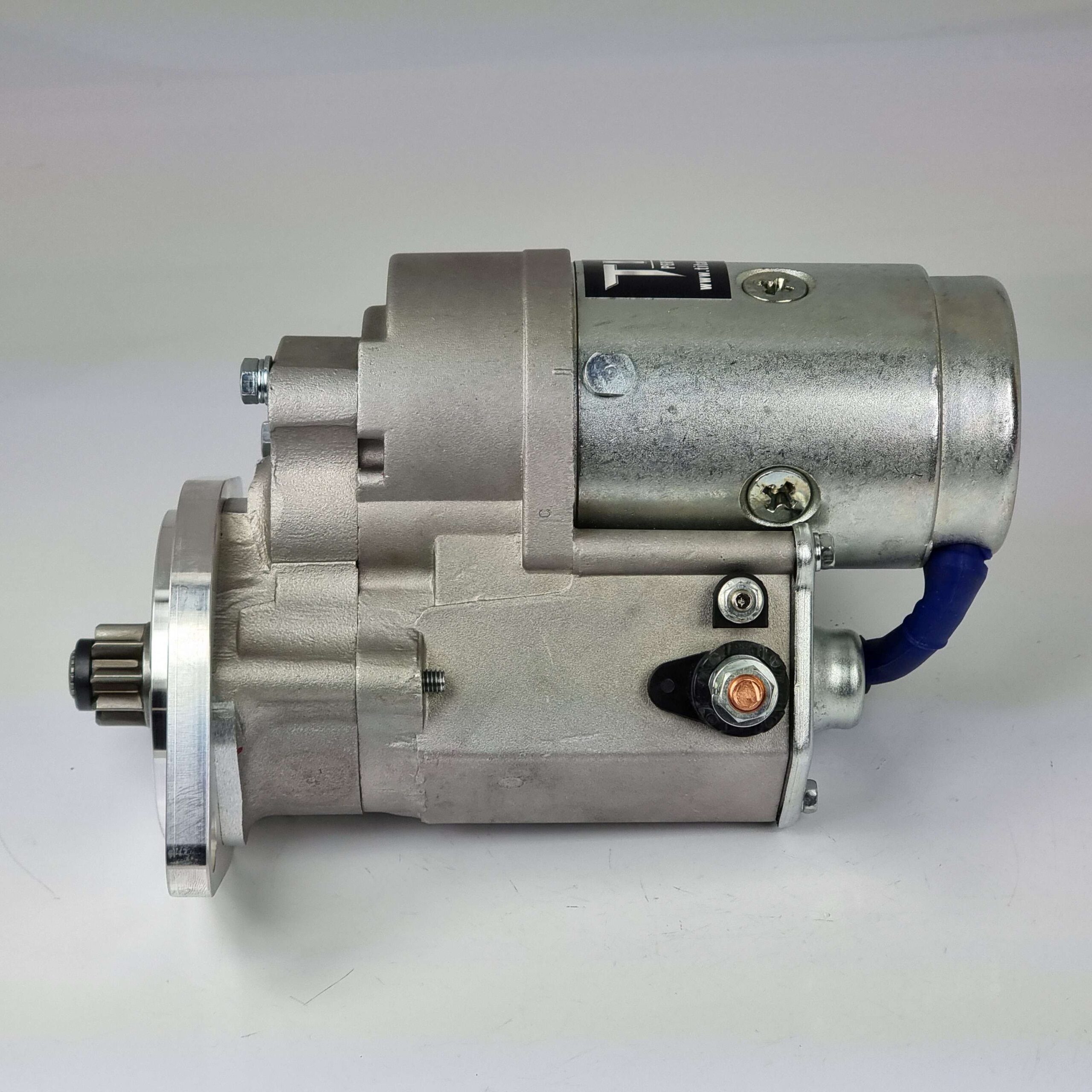

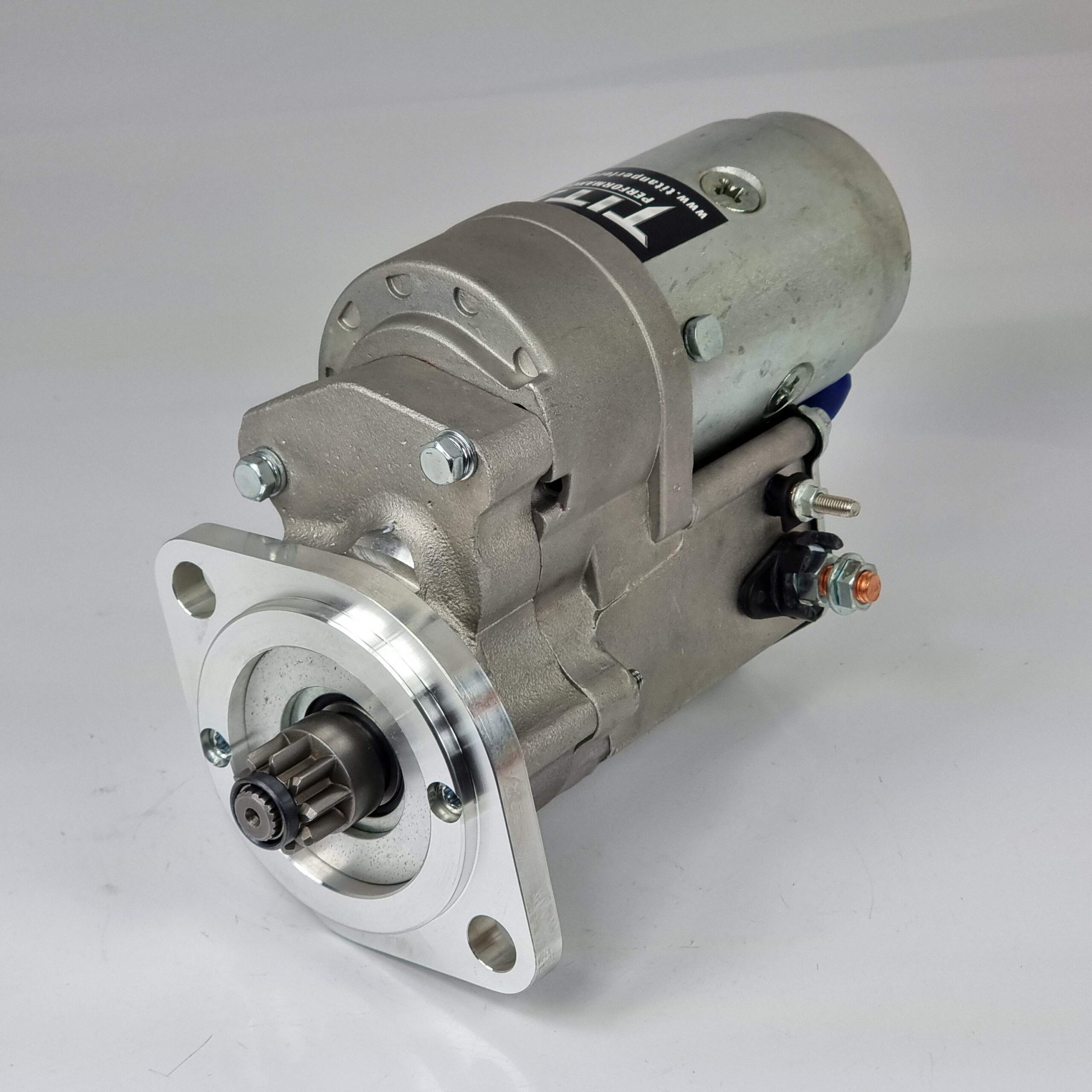

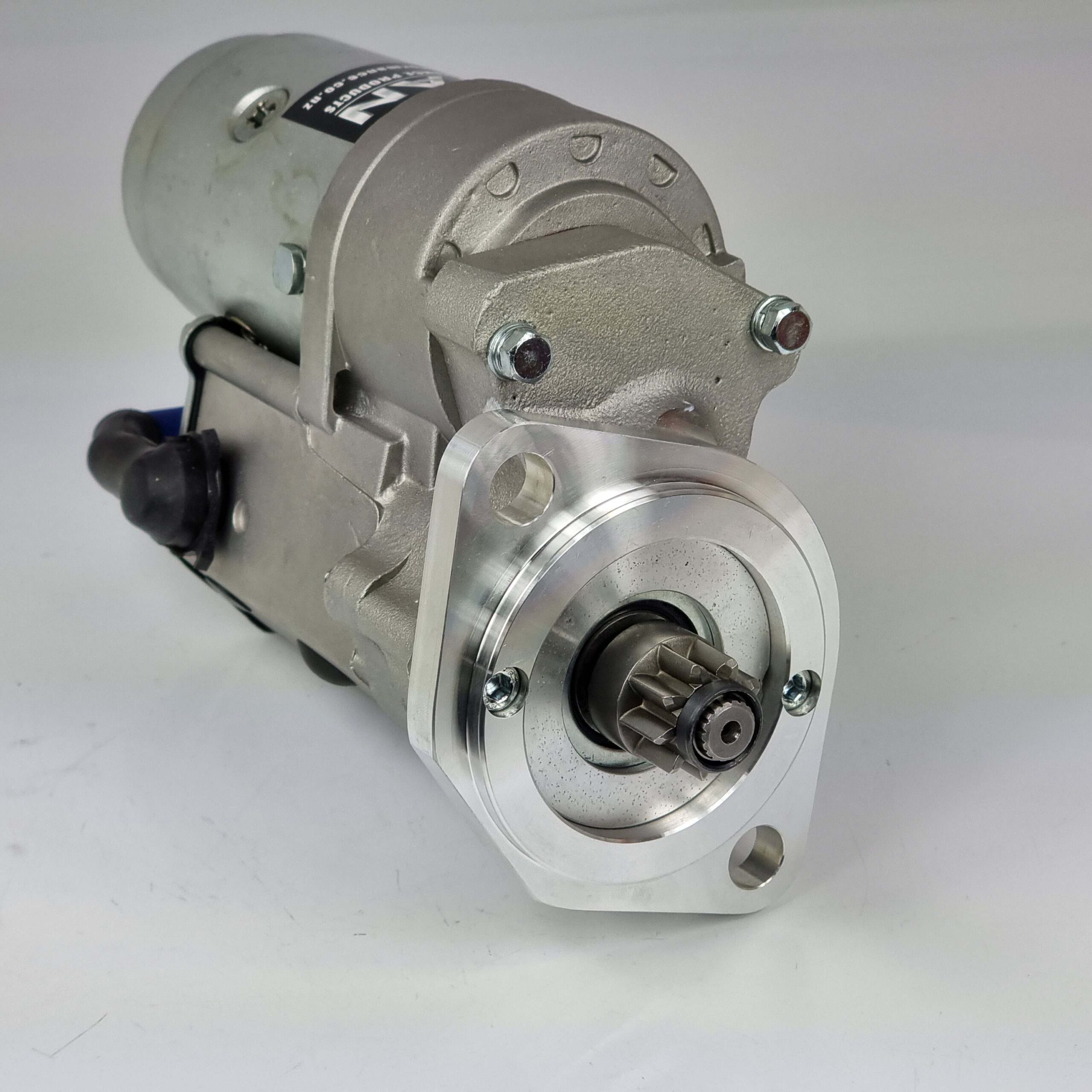

#61 Chevrolet Blue Flame Straight 6 1942-1962 2kw ‘Ultra Torque’ High Torque Starter
$449.00
Chevrolet Stovebolt L6 Straight 6 Blue Flame 2kw/ 2.7hp
2 options depending on ring gear-
Early 40’s and 50’s has 139 tooth ring gear ( 6 Volt) and 29mm diameter pinion
Later 50’s to 60’s has 168 tooth ring gear and 25mm diameter pinion.
** Please advise if used in Truck Application as the position of Starter is different due to clutch Pedal/Lever interference **
- A Durable Ultra-High Torque Starter Motor in a Compact Lightweight design
- 4.4:1 Gear-Reduction design, Internal solenoid solves ‘heat-soak / hot-start problems
- Robust construction using all steel-gears , Increased reliability due to use of all-new modern materials and components.
- Provides more cranking power, draws less current from the battery and weighs a lot less than the original OEM Starter Motor
- High-Torque ideal for High Compression Engines up to 14:1 Compression
- Adjustable Aluminum front housing for increased clearances around exhaust, steering and suspension.
- Will bolt directly to engine with NO modifications
- Water and Corrosion Resistant
- Mounting hardware and terminal fitting kit supplied when applicable.
Start strong with Titan Performance Products.
Assembled in New Zealand / Postage 2-5 days / 18 month warranty
Specifications
Power/Torque | 2kW / 2.7hp 270nm 12 Volt Only |
Pinion/Rotation | 9Tooth CW |
Mounting Dimensions | 2-Hole 83mm Spigot 108mm Bolt Centers |
Dimensions/Weight | 210 x 150 x 100 /4.7kg |
Vehicle Make and Model Compatibility
Make | Model | Engine Size | Year |
Chevrolet/GM | Bel Air, 150, 210 , Corvette, Nomad, Biscayne, Impala, El Camino, Kingswood, Fleetwood, Delray, Fleetline, Corvette, Impala, Suburban C10, C20,C30, C40, C50, C60 L6 Pickup. K10, K20 Pickup. P10, P20, P30 Series | L6- 216/ 228/ 235/ 236/ 248/ 261 | 1942-1962 |
Additional information
Pinion Diameter | TS-1301-2KW 29mm diameter pinion suit 1942-54 139 Tooth Flywheel, TS-1302-2KW 25mm diameter pinion suit 1950-62 168 Tooth Flywheel |
---|
