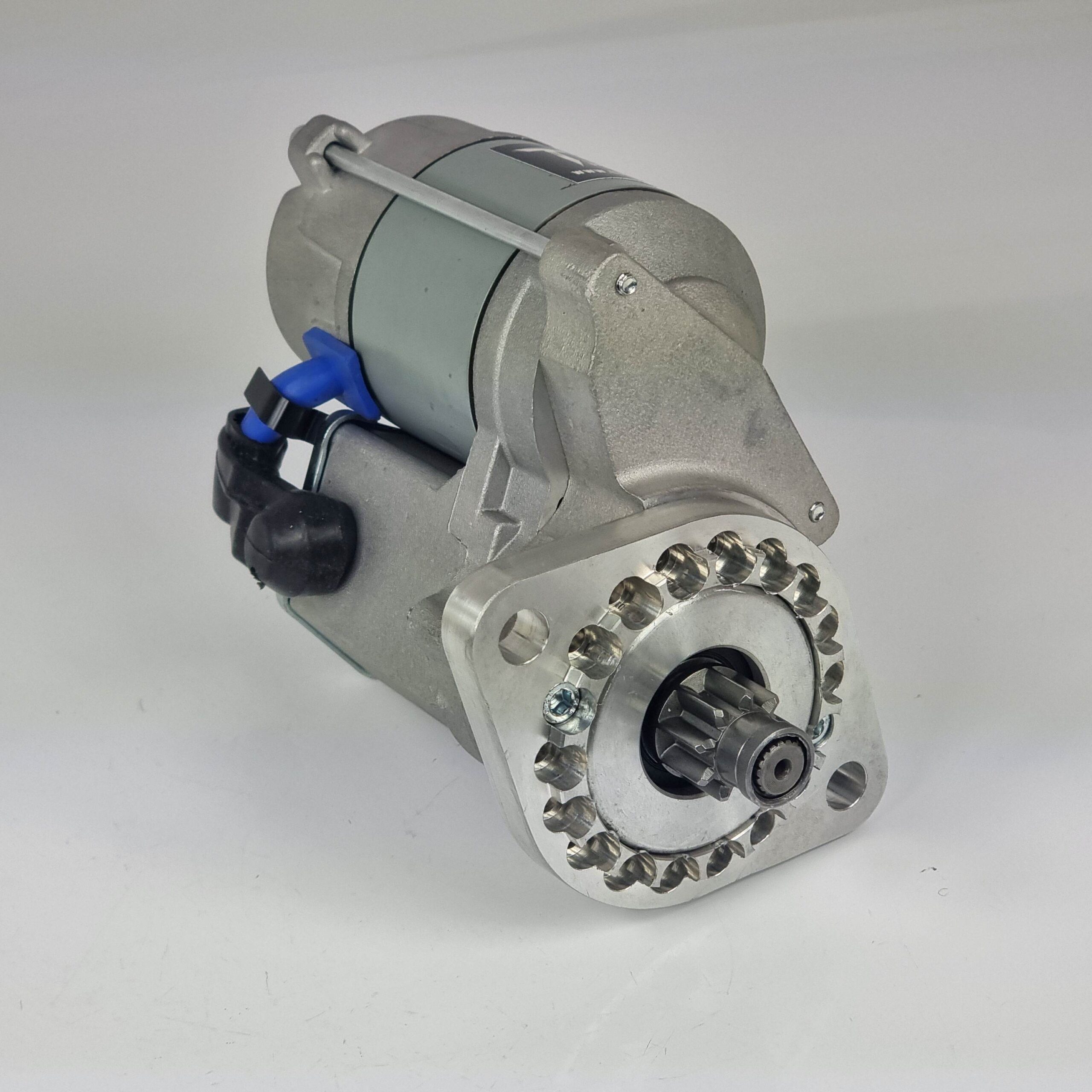

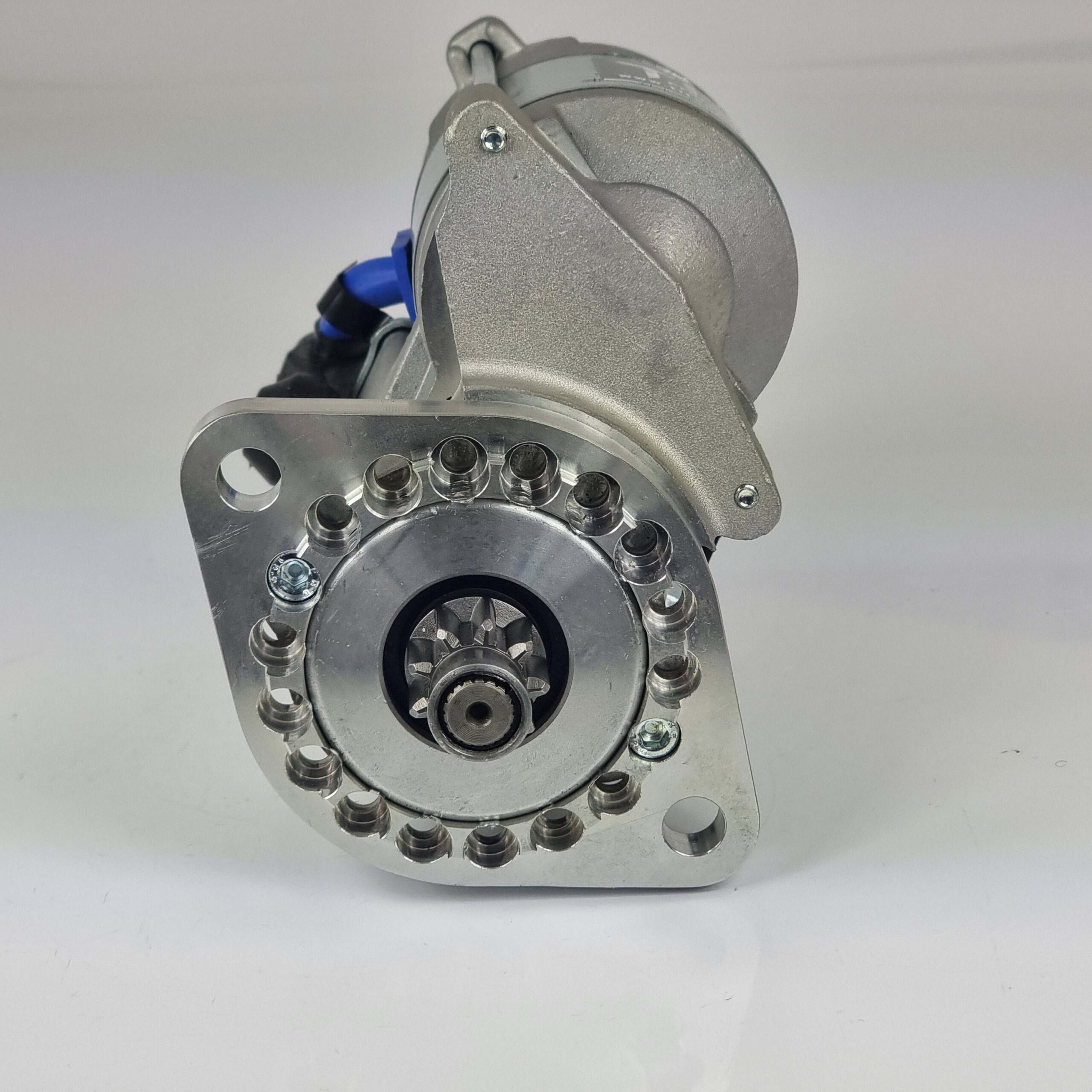

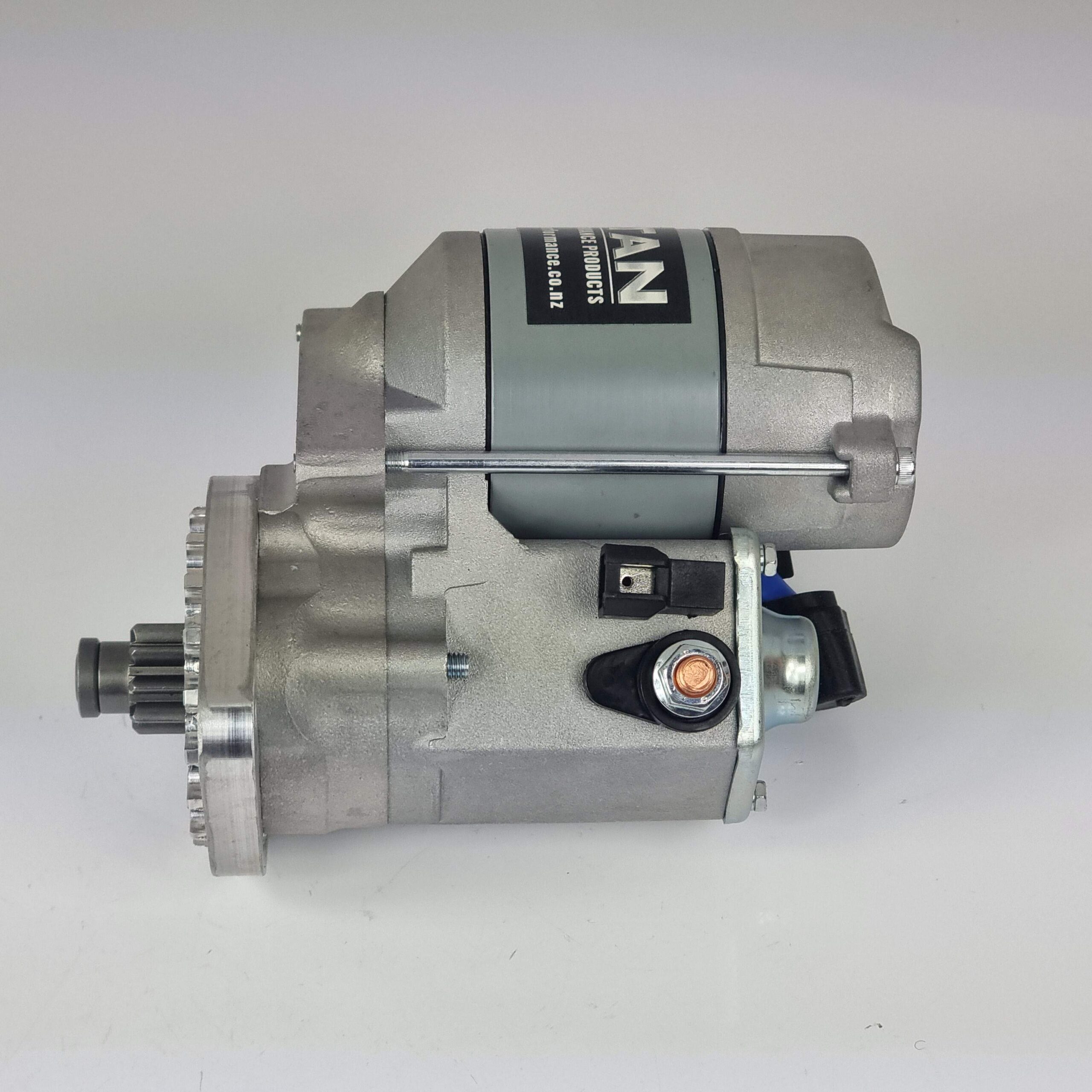

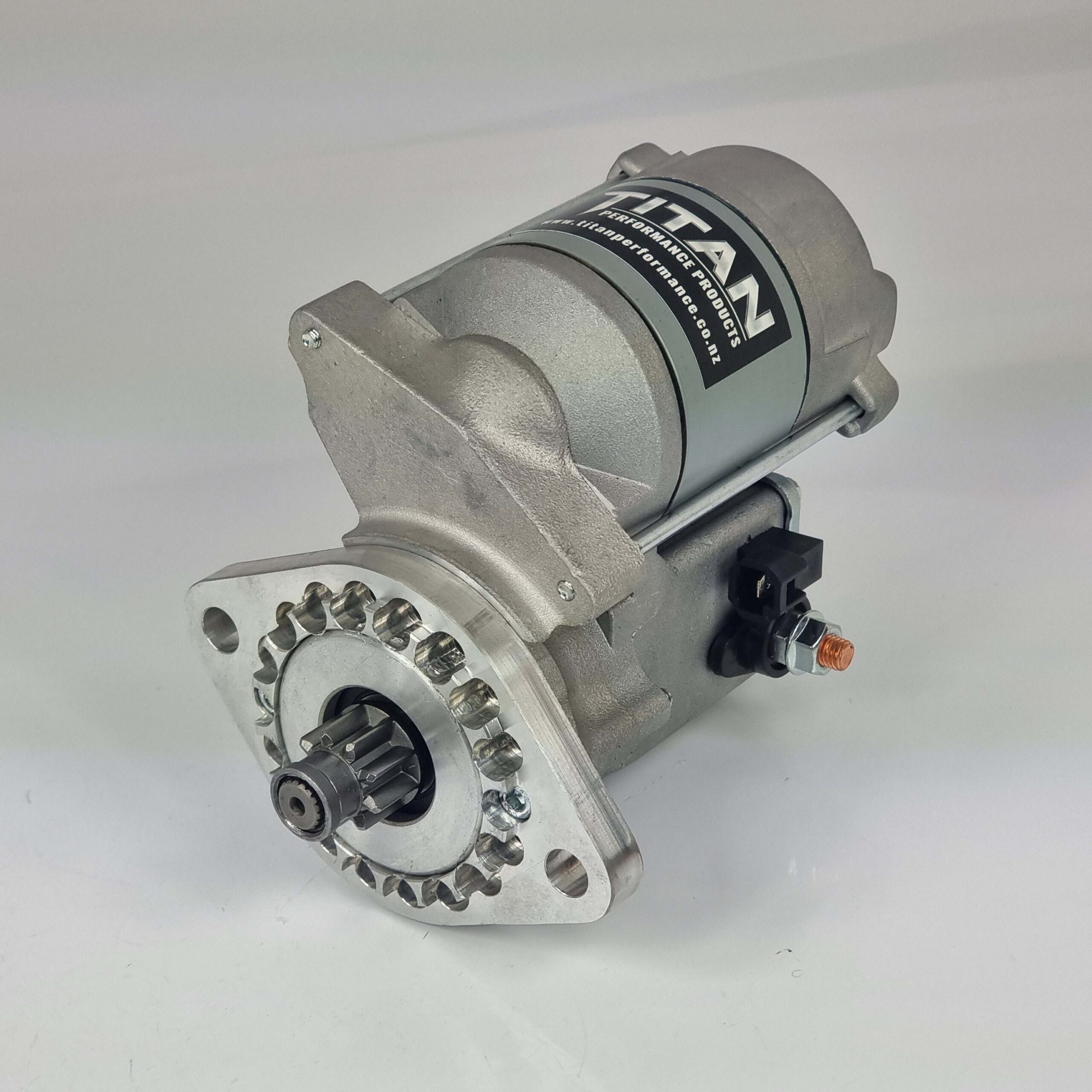

#2 BMW 3 & 5 series 1977-1987 High-Torque Starter Motor TS-6001
Price range: $399.00 through $489.00
Available in both 1.4kw ‘Quick-Start’ & 2kW ‘Ultra-Start’ Power Outputs.
- A Durable Ultra-High Torque Starter Motor in a Compact Lightweight design
- 4.4:1 Gear-Reduction design, Internal solenoid solves ‘heat-soak / hot-start problems
- Robust construction using all steel-gears , Increased reliability due to use of all-new modern materials and components.
- Provides more cranking power, draws less current from the battery and weighs a lot less than the original OEM Starter Motor
- High-Torque ideal for High Compression Engines up to 14:1 Compression
- Adjustable Aluminum front housing for increased clearances around exhaust, steering and suspension.
- Will bolt directly to engine with NO modifications
- Water and Corrosion Resistant
- Mounting hardware and terminal fitting kit supplied when applicable.
Start strong with Titan Performance Products.
Assembled in New Zealand / Postage 2-5 days / 18 month warranty
Specifications
| Power/Torque | 1.4kw/1.9hp ‘Quick-Start’ + 2kw/2.7hp ‘Ultra-Start |
| Pinion/Rotation | 9 Tooth Pinion 25mm Diameter. Clockwise |
| Mounting Dimensions | 76mm Spigot, 105mm Bolt Centers |
| Dimensions/Weight | 1.4kw-4kg & 2kw 4.5kg |
Vehicle Make and Model Compatibility
| Make | Model | Engine Size | Year |
| BMW | 320 E21,320i E30, 323i E21/E30, 325e E30, 325i E30 | 2.0, 2.3, 2.7, 2.5L M20B20 6 cyl, M20B23, M20B27, M20B25 | 1977-1987 |
| BMW | 520 E12, 520i E28, 525e E28, 528e E28, Z1 E30 | 2.0, 2.5, 2.7L M10B20 4 cyl, M20B20, M20B27 | 1981-1987 |
Additional information
| Power Output | TS-6001 'Quick-Start' 1.4kw 1.9hp, TS-6001-2 'Ultra-Start' 2kw 2.7hp Recommended for 6 Cylinders |
|---|
