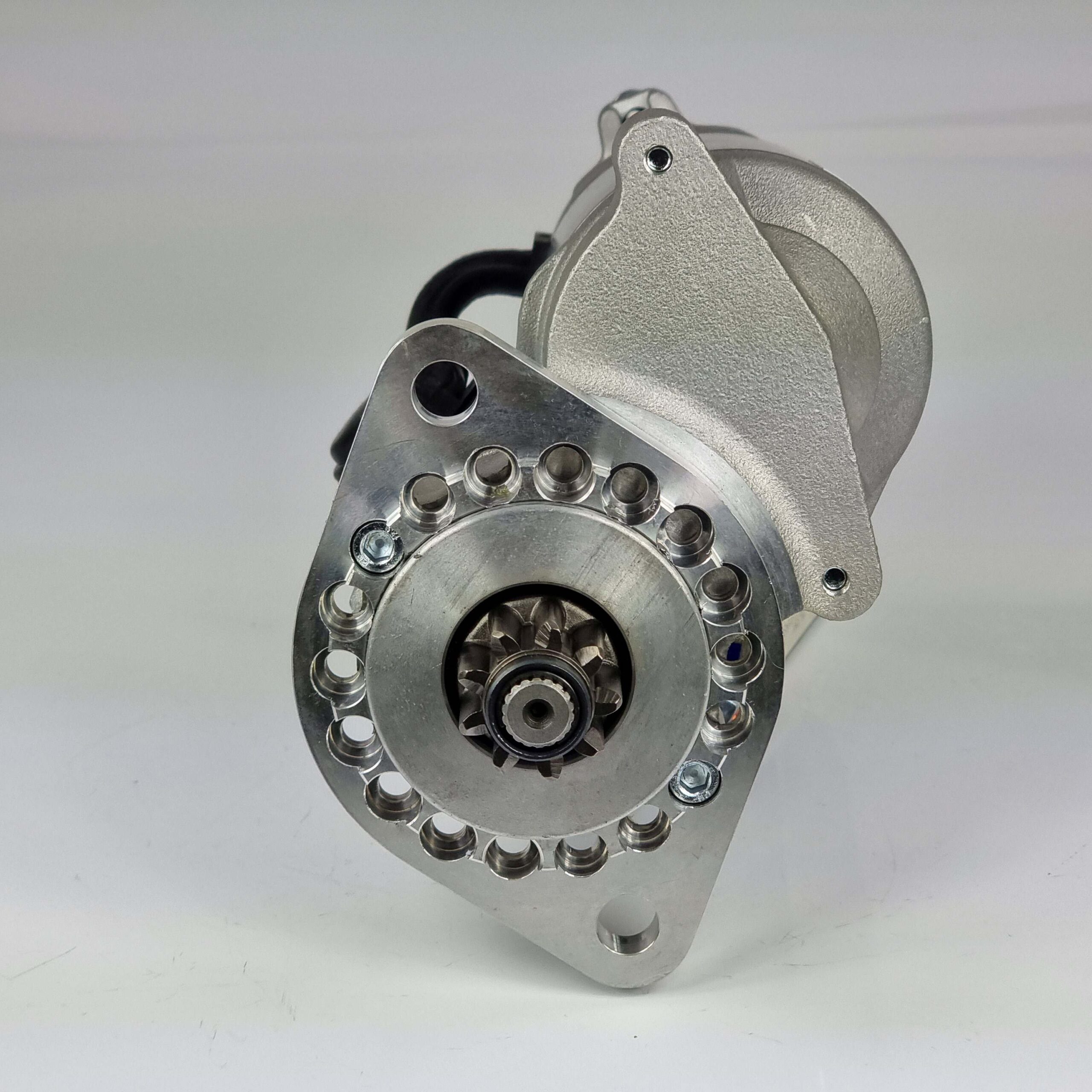

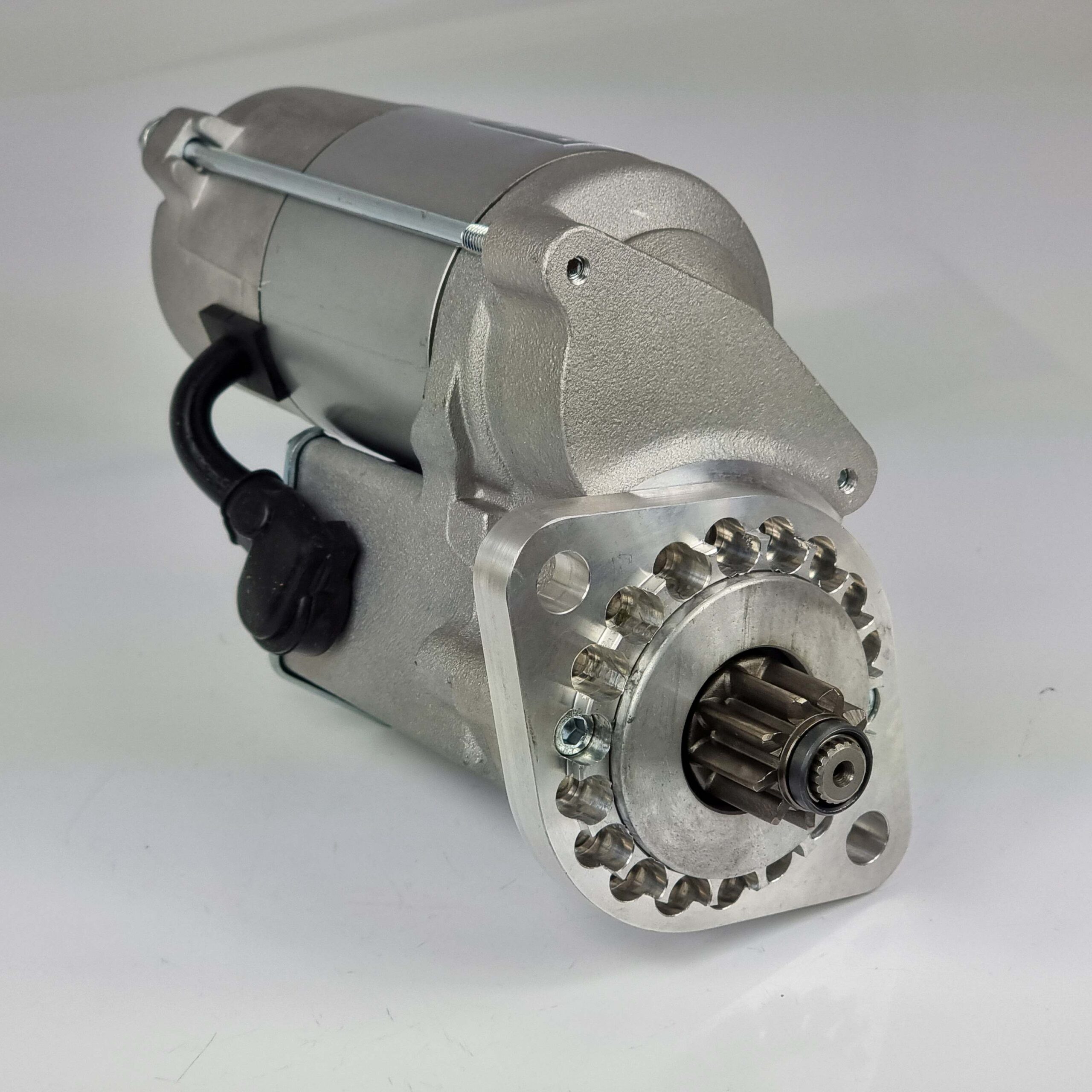

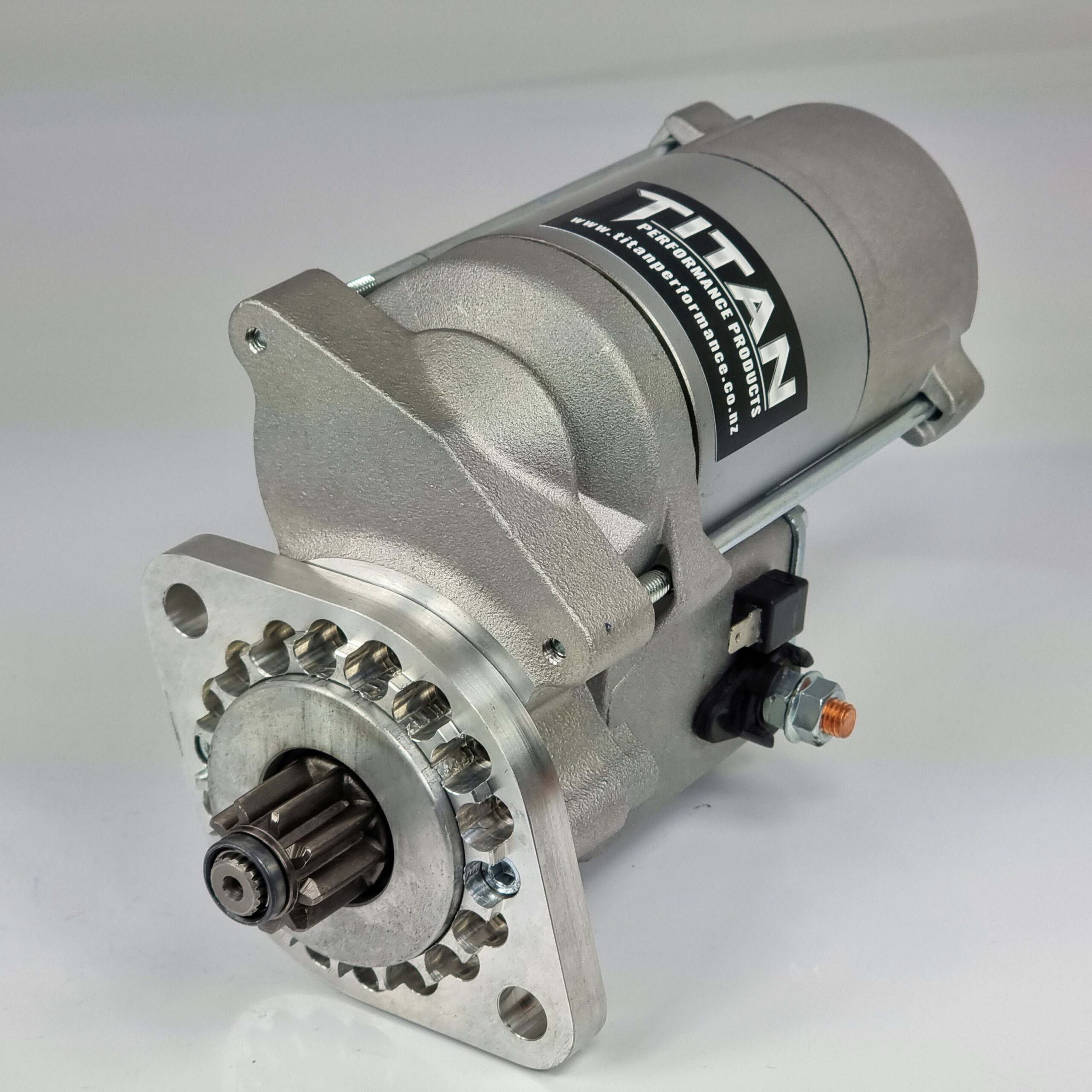

#1 BMW Various Models 1962-1994 High Torque Starter Motor TS-6003

Price range: $399.00 through $489.00

Hi torque starter motor fits BMW’s manufactured between 1964 & 1994.

This starter will fit the following BMW’s listed below.

Available in both 1.4kw ‘Quick-Start’ & 2kW ‘Ultra-Start’ Power Outputs.



  • A Durable Ultra-High Torque Starter Motor in a Compact Lightweight design
  • 4.4:1 Gear-Reduction design, Internal solenoid solves ‘heat-soak / hot-start problems
  • Robust construction using all steel-gears , Increased reliability due to use of all-new modern materials and components.
  • Provides more cranking power, draws less current from the battery and weighs a lot less than the original OEM Starter Motor
  • High-Torque ideal for High Compression Engines up to 14:1 Compression
  • Adjustable Aluminum front housing for increased clearances around exhaust, steering and suspension.
  • Will bolt directly to engine with NO modifications
  • Water and Corrosion Resistant
  • Mounting hardware and terminal fitting kit supplied when applicable.

Start strong with Titan Performance Products.

Assembled in New Zealand / Postage 2-5 days / 18 month warranty

Clear

SKU N/A Categories , Tags ,

Specifications

Power/Torque  1.4kw/1.9hp ‘Quick-Start’ + 2kw/2.7hp ‘Ultra-Start
Pinion/Rotation 9 Tooth 29mm Diameter / Clockwise
Mounting Dimensions 76mm Spigot, 105mm Bolt Centers
Dimensions/Weight 1.4kw-4kg, 2kw 4.5kg

Vehicle Make and Model Compatibility

Make Model Engine Size Year
BMW 1500, 1502, 1600, 1602, 1800, 1802, 2000, 2002, 2500, 2800, 3.0 1.5L, 1.6L, 1.8L, 2.0L, 2.5L, 2.8L, 3.0L 1962-1976
BMW 315, 316, 316i, 318 318i, 320, 320i 1.6L, 1.8L, 2.0L 1975-1990
BMW 518, 520i, 525i, 528i, 530i, 535i, 1.8L, 2.0L, 2.5L, 2.8L, 1972-1987
BMW 628CSi, 628, 633, 635, 728, 728i, 730i, 735,i 2.8L, 3.0L,3.2L, 3.4L, 3.5L 1976-1989
BMW M3, M5, M6 2.3L, 2.5L, 3.6L 1988-1994

Additional information
Power Output

TS-6003 'Quick Start' 1.4kw 1.9hp, TS-6003-2 'Ultra-Start' 2kw 2.7hp Recommended for 6 cylinder Engines
