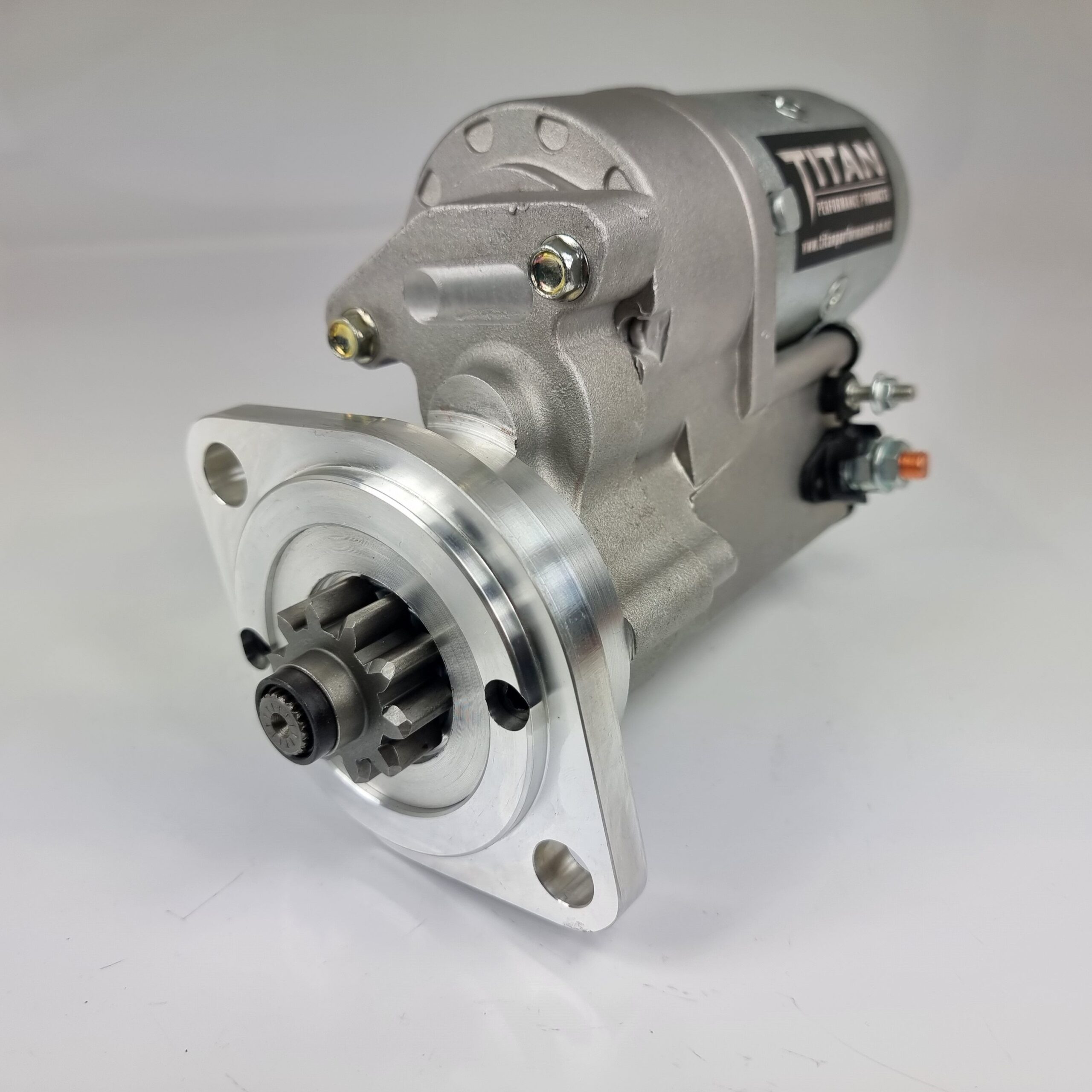

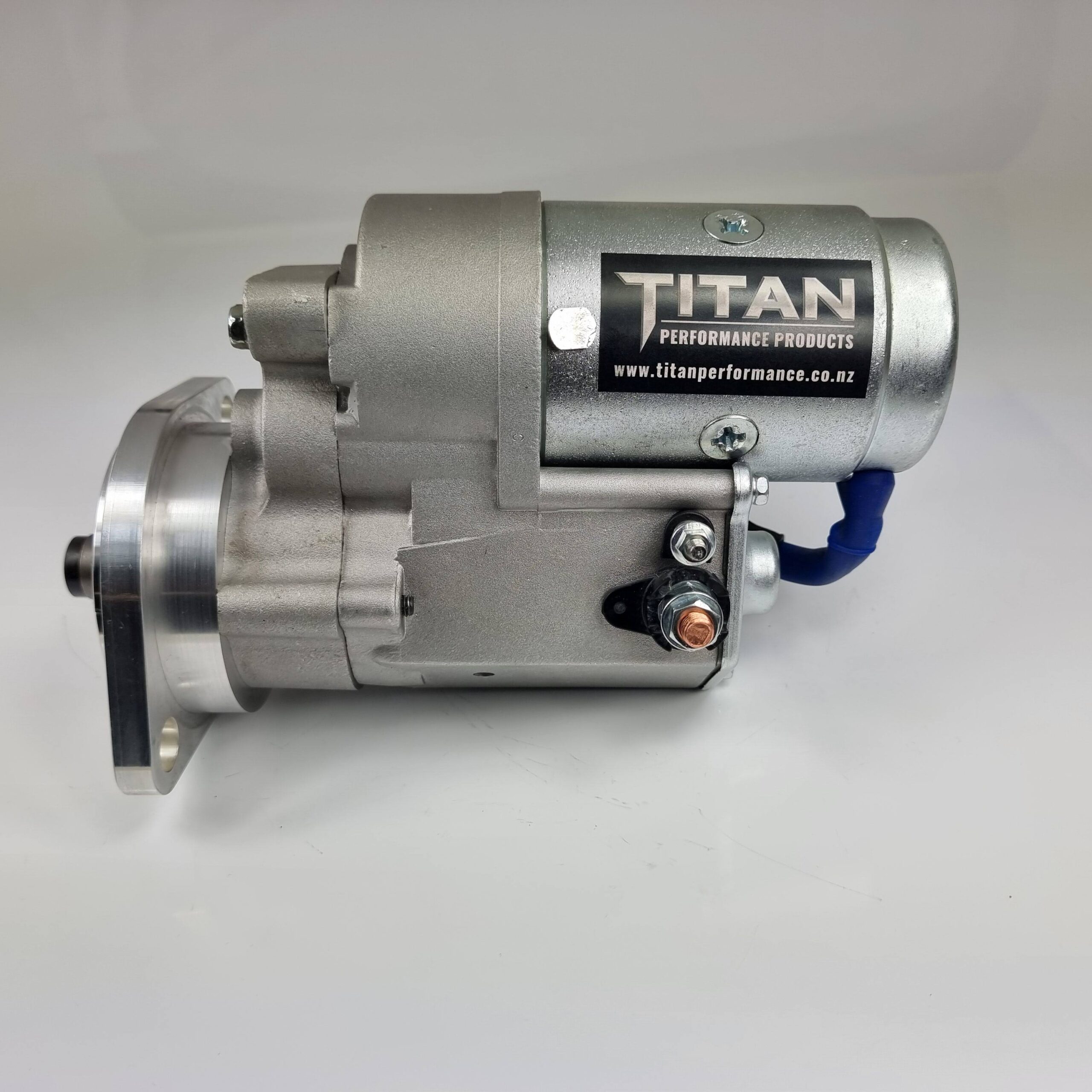

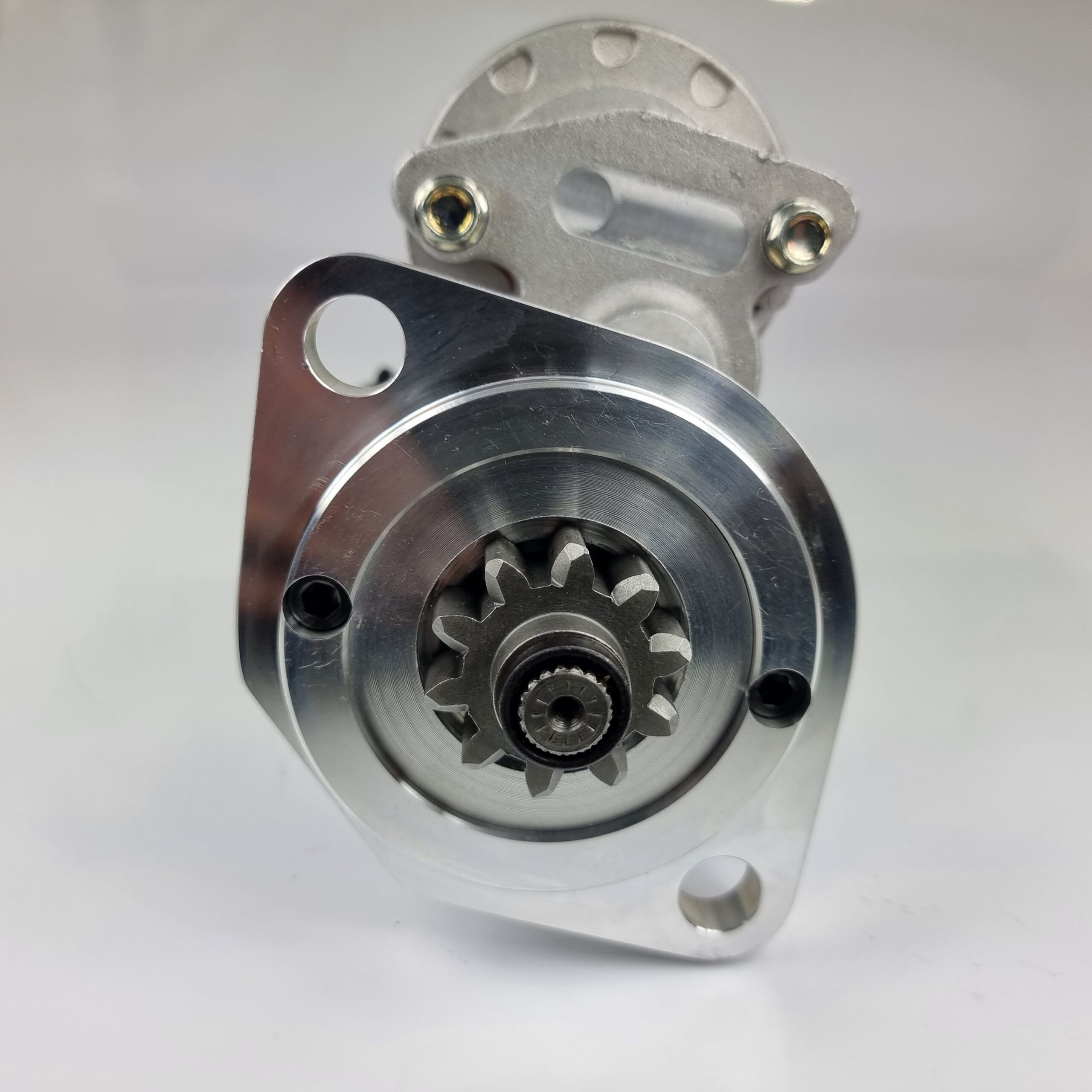

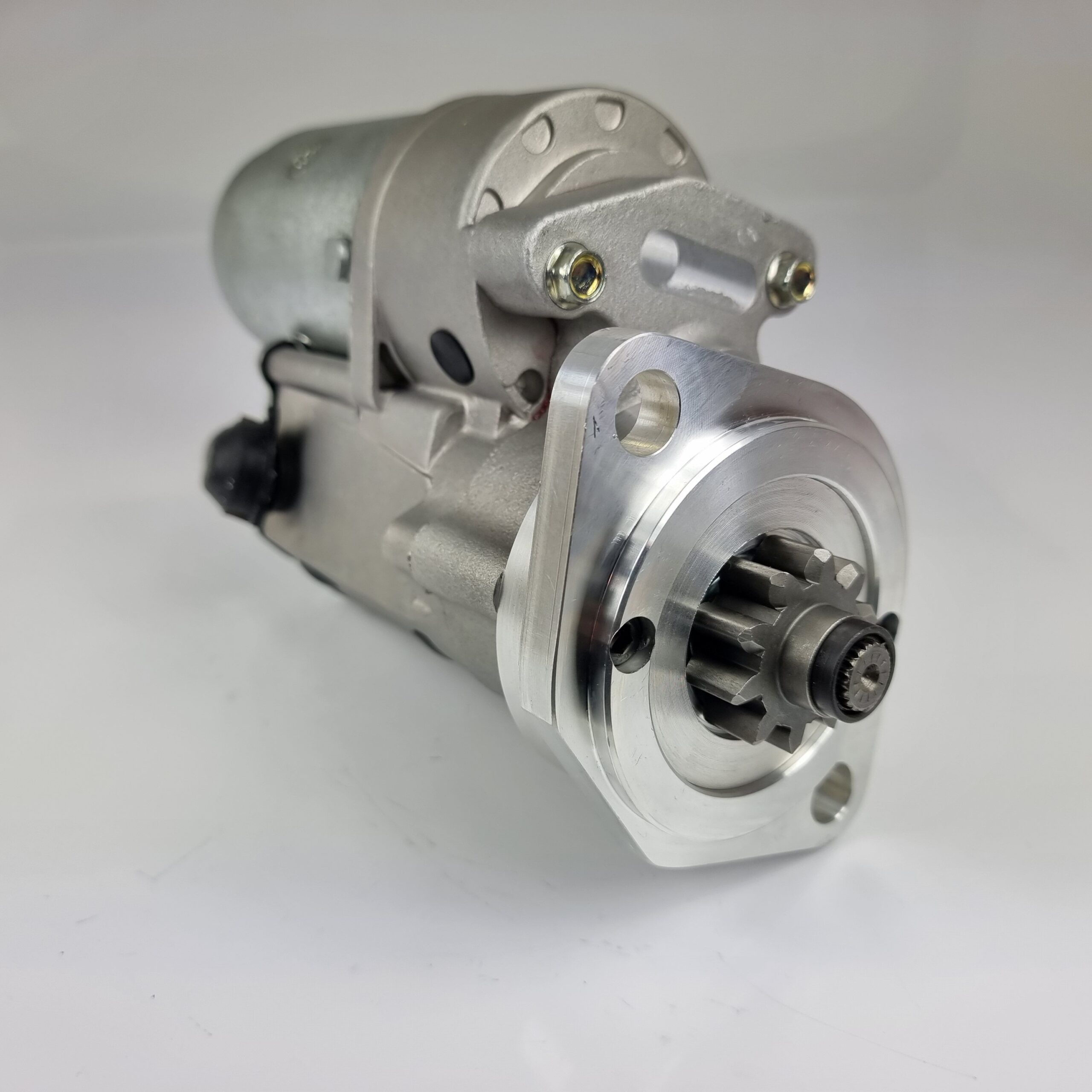

#62 Chevrolet 1929-1936 Stovebolt Six 2kw ‘Ultra Torque’ High Torque Starter TS-1313
$449.00
Chevrolet Stovebolt Six ‘AC International’ 2kw/ 2.7hp
- A Durable Ultra-High Torque Starter Motor in a Compact Lightweight design
- 4.4:1 Gear-Reduction design, Internal solenoid solves ‘heat-soak / hot-start problems
- Robust construction using all steel-gears , Increased reliability due to use of all-new modern materials and components.
- Provides more cranking power, draws less current from the battery and weighs a lot less than the original OEM Starter Motor
- High-Torque ideal for High Compression Engines up to 14:1 Compression
- Adjustable Aluminum front housing for increased clearances around exhaust, steering and suspension.
- Will bolt directly to engine with NO modifications
- Water and Corrosion Resistant
- Mounting hardware and terminal fitting kit supplied when applicable.
Start strong with Titan Performance Products.
Assembled in New Zealand / Postage 2-5 days / 18 month warranty
Specifications
| Power/Torque | 2kW / 2.7hp 270nm 12 Volt Only |
| Pinion/Rotation | 10 Tooth 40mm Diameter , Clockwise |
| Mounting Dimensions | Spigot 82mm, Hole Centers 105mm |
| Dimensions/Weight | 210 x 150 x 100 /4.9kg |
Vehicle Make and Model Compatibility
| Make | Model | Engine Size | Year |
| Chevrolet | Cabriolet Series AC International, Series AD Universal, Series AE Independence, Series BA Confederate | 181ci, 3.0L,194ci 3.2L, 207ci 3.4L OHV ‘Stovebolt Six’ 6cyl | 1929-1936 |
| Chevrolet | Series CA Eagle / Master DA Master EA/ED | 207ci 3.4L OHV 6cyl | 1933-1936 |
| Chevrolet | Trucks, Commercial Utility Series CB/OA/OB/OC/OD Series EB/QA/QB/QC/QD | 1929-1936 |
Additional information
| Pinion Diameter | TS-1301-2KW 29mm diameter pinion suit 1930-50 139 Tooth Flywheel, TS-1302-2KW 25mm diameter pinion suit 1950-60 168 Tooth Flywheel |
|---|
